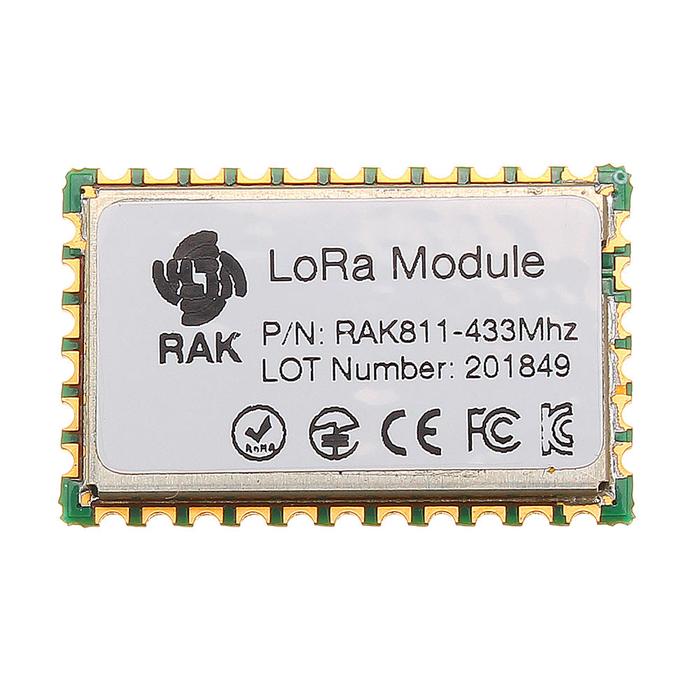

RAK811 LoRa Module SX1276 Wireless Communication Spread Spectrum WiFi

RAK811 LoRa Module SX1276 Wireless Communication Spread Spectrum WiFi 3000 Meters Support LoRaWAN Protocol Deskripsi : Features: LoRaWAN protocol supported, global license-free ISM band, full certification by region.Easy to use, UART interface, serial port AT command, baud rate and air rate online change supported, simple ASCII command set.Maximum output power 100MW (20dBm), adjustable from 5 to 20dBm.High sensitivity, -130 dBm, enabling extremely long range connectivity.Long range - greater than 3000m.Low power consumption, 500nA on standby, in-air wake-up supported.Multi-channel, dual data buffer (256byres each).LoRa/FSK/GFSK/OOK modulation, bidirectional 2 way communications.Parameter:Host Interface: UART1, UART2, GPIOsTransmit: 14dBm, Max20dBmRX Sensitivity: -130dBm(RSSI), -15dBm(SNR)Current Consumption TX: 60mA, RX: 9.9mA, Hibernate: 500nASize: 22x14x1.7mmOperating Temperature: -40C~85CStorage Temperature: -40C~85CDistance: 3000mPackage includes:1 x RAK811 LoRa JH-1412867 Terimakasih sudah belanja di toko kami.
