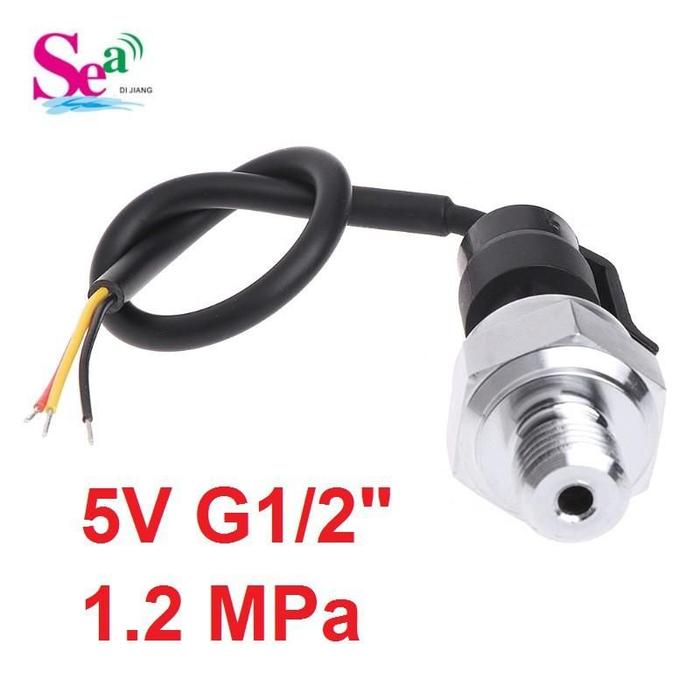

Pressure Transducer Transmitter Sensor Arduino Water Gas Oil Fuel

Pressure transmitter ini manufacture di china tanpa brand karena tidak diimport secara resmi oleh distributor manapun. karena aturannya jika diimport secara resmi harus mamakai merek. contoh barang2 yg diimport dari china oleh pt. kawan lama dengan memakai brand krisbow. Features 1.Suitable for wall hanging furnace, gas furnace, gas storage, etc all kinds of hydraulic, pneumatic pressure measurement 2.Suitable for civil use product batch 3.Static accuracy: plus or minus 1.0% FS 4.Pressure range 0-1.2 MPa (can be customized according to customer requirements) 5.Wide range of temperature compensation 6.Medium for non-corrosive gas, water, oil, etc Typical Application Non-corrosiveness Liquid pressure survey Technical Parameters Working Voltage: 5.0 VDC Output Voltage: 0.5-4.5 VDC Working Current: lt;=10 mA Working Pressure Range: 0-1.2 MPa The Biggest Pressure: 2.4 MPa Destroy Pressure: 3.0 MPa Working TEMP. Range: 0-85 Celsius Degree Storage Temperature Range: 0-100 Celsius Degree Measuring Error: +_ 1.5 %FSO Temperature Range Error: +_3.5 %FSO Response Time: lt;=2.0 ms Cycle Life: 500,000 pcs Wiring: Kabel Merah: + Kabel Hitam: - Kabel Kuning: Output SKU : 3131/1156659749298290688/55
