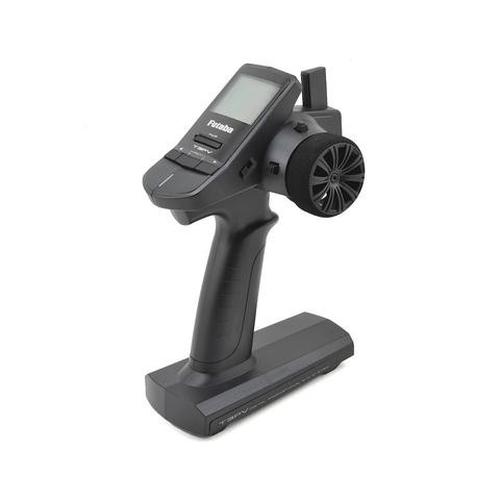

Futaba 3PV 3-Channel 2.4GHz FHSS/S-FHSS w/R314SB Receiver Radio System

Mint, Back in Box. Never been used.


Item No: 070070393 - RC Radio Control System

This version of the 3PV with R314SB (4-Channel) telemetry receiver is for those that want to keep an eye on their receiver voltage. But the 3PV is also available with a high-voltage R203GF receiver (click here) that is perfect for brushless ESCs and digital servos.

Features:
FHSS/S-FHSS/T-FHSS protocols
10-model memory
Model Reset
Model Name (4-Character)
Low Battery Alarm
Link Mode (T-FHSS only)
DT3 Selection
SW1
Steering Trim
Throttle Trim
Channel 4 Trim
Sub Trim
Steering Dual Rates
Steering End Point Adjustment spacer
Throttle End Point Adjustment
Channel 3 End Point Adjustment
Channel 4 End Point Adjustment
4WS/Brake Mixing
Steering Servo Reversing
Throttle Servo Reversing
Channel 3 Servo Reversing
Channel 4 Servo Reversing
Steering Exponential
Throttle Exponential
Throttle Fail Safe
ABS Function
Model Data Copy
Auto Power-Off after 10 minutes

Please note: the 3PV is not compatible with FASST electronics.

Specifications:

3PV Transmitter:
Type: 3-Channel FHSS/S-FHSS/T-FHSS
Includes: 3-Channel R314SB Receiver
Requires: (4) "AA" alkaline batteries, or 6.6V 1900mAh LiFe battery (HCAM6521), or 6V NiMH Battery (FUTM1482)

R314SB Receiver:
Type: 4-Channel FHSS/S-FHSS/T-FHSS
Input Power: 4.8V-7.4V
Dimensions: 1.38 x 0.91 x 0.33 in (35.1 x 23.2 x 8.5 mm)
Weight: 0.23 oz (6.6 g)
Rated Voltage: DC4.8V-7.4V
Operating Voltage: DC4.0V-8.4V
