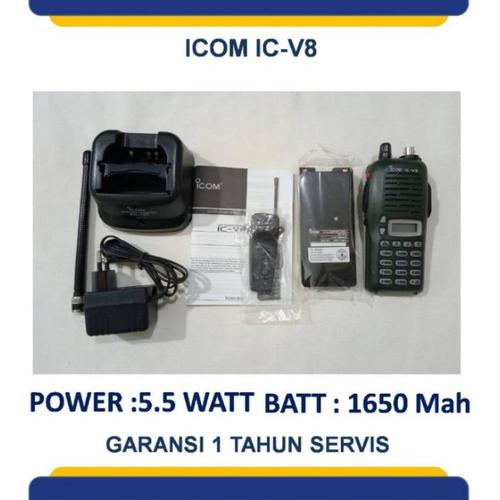

ICOM IC-V8, ht icom v8 jepang radio komunikasi single band vhf, litium

MERK : ICOM TYPE : IC-V8 POWER : 5.5 WATT FREKUENSI : VHF : 136 - 174 MHz BATERAI : 1650 MAH GARANSI : 1 TAHUN SERVIS Spesification : General Frequency Coverage: Transmit: 144-148 MHz Receive: 136-174* MHz (*144 -148 MHz guaranteed) Mode: FM (F3E, F2D) Number of memory channels: 107 (100 regular, 6 scan edges and 1 call) Frequency stability: ± 10 ppm +14°F to +140°F. (-10°C to +60°C) Operating Temperature Range: +14°F to +140°F. (-10°C to +60°C) Power supply requirement (negative ground): 7.2 V DC Current Drain (at 7.2 V DC): Transmit (5.5 W): 2.0 A: Transmit (0.5 W): 0.7 A (typical) Receive (Power save): 20 mA; (Standby): 70 mA; (Maximum audio): 250 mA (typical) Antenna Connector: BNC (50 ohm) Dimensions: 2.13(W) x 5.3(H) x 1.38(D) inches (54x132x35 mm) Weight (approx, with antenna and battery): 12.3 ounces (350 g) Transmitter Output power (at 7.2 V DC): 5.5 watts High, 0.5 watts Low Modulation: Variable reactance frequency modulation Maximum frequency deviation: ±5.0 kHz Spurious emissions: Less than -60 dB External mic connector: 3-conductor, 2.5 (d) mm (1/10 inch), 2.2K ohms Receiver Receiver system: Double conversion superheterodyne Intermediate frequencies: 1st: 21.7 MHz 2nd: 450 kHz Sensitivity: 0.16 µV (typical for 12 db SINAD) Squelch sensitivity: 0.10 µV (typical at threshold) Selectivity: 65 dB typical Spurious and image rejection: 75 dB (typical) Audio output power (at 7.2 V DC): 300 mW (typical with an 8 ohm load) External speaker connector: 3-conductor, 3.5 (d) mm (1/8 inch), 8 ohm Specifications are subject to change without notice or obligation . . Isi Paket: - 1 unit main HT - 1 unit Battery - 1 unit antena - 1 unit docking charger - 1 unit DC/AC charger - 1 unit clip hanger (pegangan klip) - 1 unit belt holder (tali pegangan) - 1 unit user manual - 1 box . . Syarat dan ketentuan garansi : -Garansi hanya berlaku untuk unit radio, tidak termasuk battery dan aksesorisnya. -Garansi sejak waktu pembelian dengan bukti pembelian pada nomor
