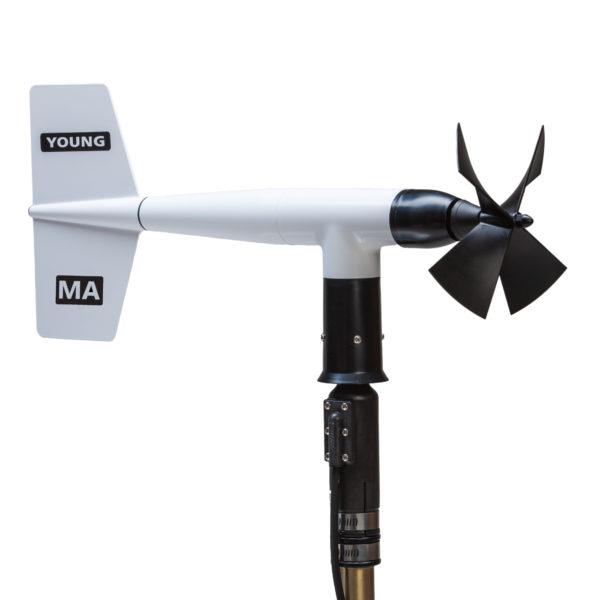

RM YOUNG - Marine Wind Monitor 05106-8M - 8 Meter Cable

DESCRIPTION The YOUNG Model 05106 Wind Monitor-MA measures horizontal wind speed and direction. Similar in operation to Model 05103, it utilizes long-lasting, corrosion resistant, ceramic bearings and ruggedized vertical components for the additional rigors of a marine environment. The sensor is available with different cable lengths that are attached in a sealed capsule internal to the sensor. The direct output for wind speed is an AC sine wave and direction is a precision potentiometer. This sensor mounts on a standard 1-inch IPS pipe. SPECIFICATION Range: Wind speed: 0-100 m/s (224 mph) Azimuth: 360° mechanical, 355° electrical (5° open) Accuracy: Wind speed: ± 0.3 m/s (0.6 mph) or 1% of reading Wind direction: ± 3° Threshold: * Propeller: 1.0 m/s (2.4 mph) Vane: 1.0 m/s (2.4 mph) Dynamic Response: * Propeller distance constant (63% recovery) 2.7 m (8.9 ft) Vane delay distance (50% recovery) 1.3 m (4.3 ft) Damping ratio: 0.3 Damped natural wavelength: 7.4 m (24.3 ft) Undamped natural wavelength: 7.2 m (23.6 ft) Signal Output: Wind speed: magnetically induced AC voltage, 3 pulses per revolution. 1800 rpm (90 Hz) = 8.8 m/s (19.7 mph) Azimuth: analog DC voltage from conductive plastic potentiometer − resistance 10K Ω , linearity 0.25%, life expectancy − 50 million revolutions Power Requirement: Potentiometer excitation: 15 VDC maximum Operating Temperature: -50 to 60°C Sensor Cable: A water tight pigtail cable is supplied for electrical connections. Available in standard lengths of 3, 8 and 12 meters. For longer cable lengths a user supplied junction box or connector may be used. Dimensions: Overall height: 37 cm (14.6 in) Overall length: 55 cm (21.7 in) Propeller: 18 cm (7 in) diameter Mounting: 34 mm (1.34 in) diameter (standard 1 inch pipe) Weight: 1.0 kg (2.2 lbs) Shipping Weight: 2.3 kg (5 lbs)
