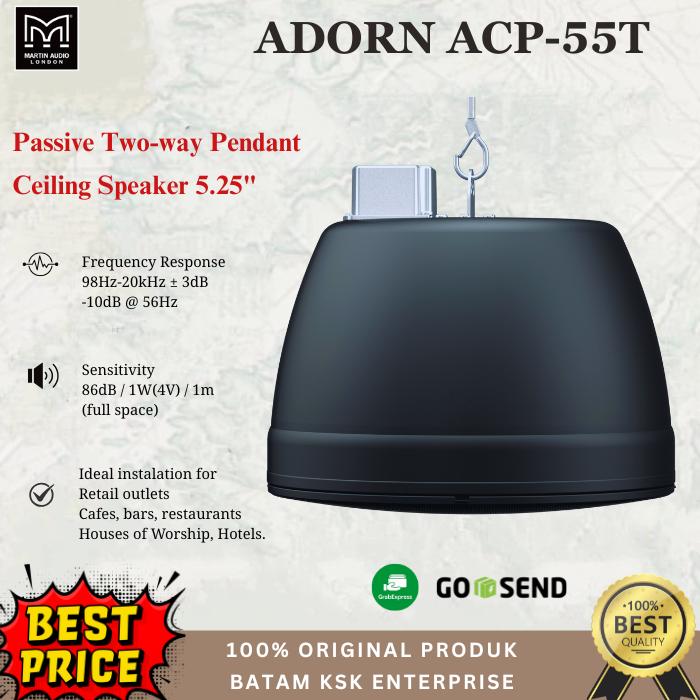

Martin Audio ACP-55T 5.25" Passive Two-way Pendant Ceiling Speaker

Specification

TYPE :Passive two-way pendant speaker, ported bass reflex
FREQUENCY RESPONSE :98Hz-20kHz ± 3dB
-10dB @ 56Hz
DRIVERS
LF: 5.25” /1” high-temp voice coil, coated paper cone, rubber surround, ferrite motor, pressed steel chassis
HF: 0.75” silk dome, neodymium motor
RATED POWER (2) 50W AES, 200W peak
RECOMMENDED AMPLIFIER VIA2004 (for low-impedance operation)
SENSITIVITY(4) 86dB / 1W(4V) / 1m (full space)
MAXIMUM SPL (9) 109dB peak
NOMINAL IMPEDANCE 16Ω
DISPERSION (-6dB) 150° conical up to 7kHz
CROSSOVER 3kHz passive (LF and HF auto-resetting fuses
TRANSFORMER TAPS
70V: 30w / 15w / 7.5w / 3.75w
100V: 30w / 15w / 7.5w
RECOMMENDED HIGH-PASS FILTER 60Hz 24dB/oct
ENCLOSURE UL 94V-0 rated ABS baffle and enclosure
FINISH Black or white
GRILLE Perforated steel, powder-coated, bayonet fitting
CONNECTORS Ceramic connector (in and link)
DIMENSIONS
(OD) 246mm x (D) 238mm
(OD) 9.7in x (D) 9.35in
WEIGHT 3.46kg (7.62lbs)
