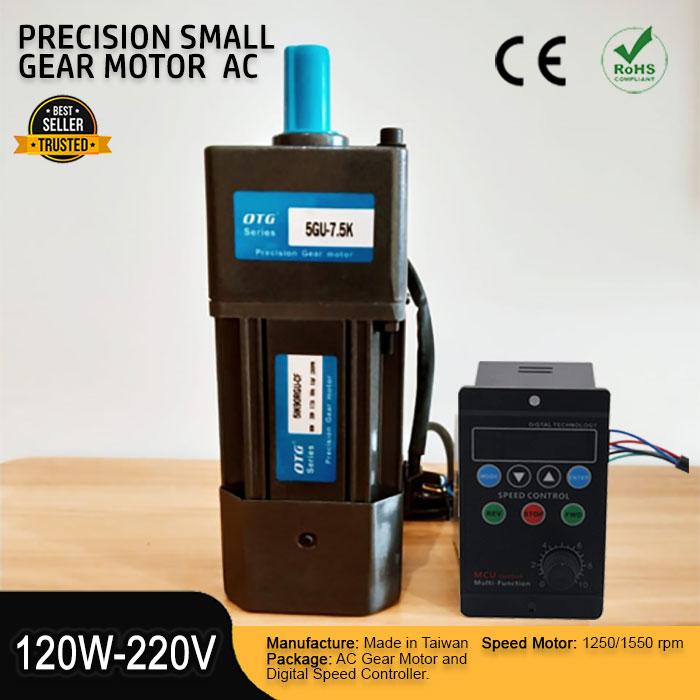

Paket gear motor induksi 1 ph AC220V 120W & digital speed controller - Ratio 5~20

PAKET GEAR MOTOR AC 1 PHASE 220V 120W DENGAN DIGITAL CONTROLLER.

FITUR PRODUK
- Gear motor ini dilengkapi dengan feedback pada speed controller agar kecepatan lebih stabil.
- Memiliki perfoma yang baik, awet, noice rendah dan temperature rendah.
- Speed Controller yang dilengkapi dengan fitur Soft Starting, supaya tidak ada hentakan dan halus saat motor dijalankan.
- Kecepatan motor dapat di atur saat motor berjalan 0 ~ 1350/1550 rpm (pada 50/60Hz).
- Fitur screen display menampilkan speed motor, forward dan reverse.

APLIKASI
- Conveyor
- Spindle grinding
- Mixer
- Driver robot, dll

SPESIFIKASI MOTOR
- Model: 5IK120GU-CF
- Type: AC Precission small gear motor
- Voltage: 1 phase 220V
- Frequency: 50/60Hz
- Power: 120W
- Current: 0.98A
- Starting torque: 8 Kg.cm
- Rated torque: 9.8 Kg.cm
- Rate speed: 1350/1550 rpm (pada 50/60Hz)
- Rate time: Continue
- Capacitor: 8uF/450V
- Maximum permissible torque: 250 Kg.cm
- Transmission efficiency: ratio 3~20 (81%), ratio 25~60 (73%), ratio 75~180 (66%)
- Diameter shaft gear head: 15mm
- PCD gear head: 104mm
- Baut gear head: 4 x diameter 8.5mm

SPESIFIKASI CONTROLLER
- Model: UX-52 120Watt
- Type: Mode digital controller
- Input voltage: 220VAC
- Output: 220V
- Range voltage operation: 220V, -10% ~ +10%
- Power frequency: 50/60hz, -2%~+2%
- Speed: 90-1400 rpm
- Speed rate: 1%
- Steady speed accuracy: 1%
- Suitable motor: 6-400W gear motor
- Speed setting: Continuous
- Soft stop/start: Yes
- Model: Control speed digital
- Colour: Black

PAKET YANG DIKIRIM
1. Motor AC 1PH 220V 120W
2. Gear head (silahkan pilih dan mohon ditanyakan dulu stock rasionya).
- Ratio (5~20): 5,7.5,10,12.5,15,18,20
- Ratio (25~60): 25, 30, 36, 40, 50, 60
- Ratio (75~180): 75, 90, 100, 120, 150
3. Control speed digital 120W
