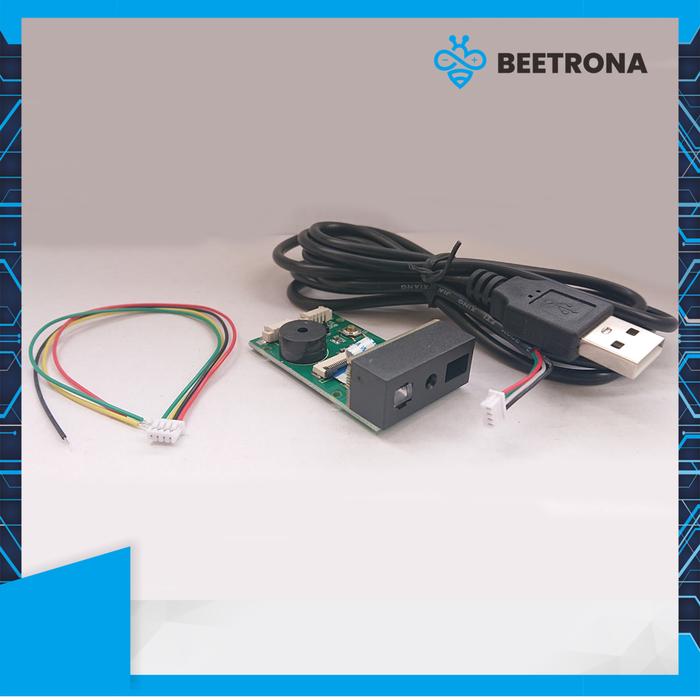

GM67 Barcode QR Scanner QRCode Sensor Module Arduino Compactible
Rp405.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: SENSOR MODULE
GM67 Modul Scan QR Code dan Barcode bisa untuk arduino
a. Scan Mode : 640*480 CMOS
b. Lighting : White LED
c. Collimate : Red LED
d. Read Code Type
-2D : QR Code, Data Matrix, PDF417,Aztec,Micro QR,Micro PDF417
-1D :
*EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128, Codabar,
*Interleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN, MSI-Plessey
*GS1 Databar ,Code 11,Industrial 25,
*Standard 25,Plessey, Matrix 2 of 5
e. Accuracy of reading : ≥5mil
f. Depth of Field :
- EAN-13 : 60mm-220mm (13mil)
- Code 39 : 40mm-90mm (5mil 10 byte)
- QR Code : 30mm-220mm (20mil 16 byte)
- Data Marix : 40mm-110mm (10mil 20 byte)
- PDF417 : 30mm-130mm (6.67mil 7 byte)
h. Contrast : ≥25%
i. Scanning angle :
- Intersection angle 360°,Elevation ± 55°
- Deflection angle ± 55°
j. Viewing Angle : -D:42° H:34° V:26°
l. Interface : TTL-232 , USB (HID-KBW, Virtual serial port)
m. Dimension : 27.5(W)*46.5(D)*14(H)mm
n. Operating Voltage : 5VDC
o. Operating Current : 180mA
p. Standby Current ; USB@25mA, TTL@10mA
r. Operating Temperature : -20ºC~+50ºC
s. Storage Temperature : -40ºC~+70ºC
t. Operating Humidity : 5%~95%(Non-Condensing)
u. Environmental Light : 0~100000LUX
a. Scan Mode : 640*480 CMOS
b. Lighting : White LED
c. Collimate : Red LED
d. Read Code Type
-2D : QR Code, Data Matrix, PDF417,Aztec,Micro QR,Micro PDF417
-1D :
*EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128, Codabar,
*Interleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN, MSI-Plessey
*GS1 Databar ,Code 11,Industrial 25,
*Standard 25,Plessey, Matrix 2 of 5
e. Accuracy of reading : ≥5mil
f. Depth of Field :
- EAN-13 : 60mm-220mm (13mil)
- Code 39 : 40mm-90mm (5mil 10 byte)
- QR Code : 30mm-220mm (20mil 16 byte)
- Data Marix : 40mm-110mm (10mil 20 byte)
- PDF417 : 30mm-130mm (6.67mil 7 byte)
h. Contrast : ≥25%
i. Scanning angle :
- Intersection angle 360°,Elevation ± 55°
- Deflection angle ± 55°
j. Viewing Angle : -D:42° H:34° V:26°
l. Interface : TTL-232 , USB (HID-KBW, Virtual serial port)
m. Dimension : 27.5(W)*46.5(D)*14(H)mm
n. Operating Voltage : 5VDC
o. Operating Current : 180mA
p. Standby Current ; USB@25mA, TTL@10mA
r. Operating Temperature : -20ºC~+50ºC
s. Storage Temperature : -40ºC~+70ºC
t. Operating Humidity : 5%~95%(Non-Condensing)
u. Environmental Light : 0~100000LUX
