Module Display OLED 128x64 LCD 12C 0.96'' Inch Arduino - Biru-Kuning
Rp35.000
Pilih warna: Biru-Kuning
Stok varian ini habis. Simpan di Wishlist untuk diingatkan ketika barang kembali tersedia.
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Semua Etalase

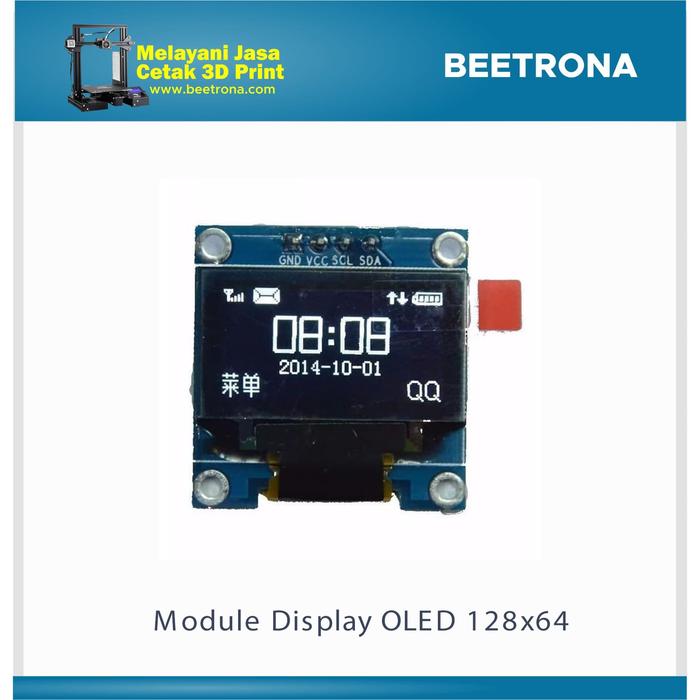

Module Display OLED 128x64 LCD 12C 0.96'' Inch Arduino ( White,Blue,Yellow & Blue )
Product description
Size: 0.96
Resolution: 128X64
Color: Blue Viewing angle: greater than 160 degrees
Supported platforms: for arduino, 51 series, MSP430
series, STIM32 / 2, SCR chips
Low power consumption: 0.04W during normal operation Support wide voltage: 3.3V-5V DC
Working temperature: -30-80 degrees
Volume: 27MM * 27MM * 4.1MM
Driver IC: SSD1306
Communication: IIC, only two I / O ports
No font: The software takes word modulo
Backlight: OLED self light, no backlight Interface:
VCC: 5V
GND: Ground
SCL: Serial Clock
SDA: Serial Data
Package Included:
1 X IIC OLED Moudle
Product description
Size: 0.96
Resolution: 128X64
Color: Blue Viewing angle: greater than 160 degrees
Supported platforms: for arduino, 51 series, MSP430
series, STIM32 / 2, SCR chips
Low power consumption: 0.04W during normal operation Support wide voltage: 3.3V-5V DC
Working temperature: -30-80 degrees
Volume: 27MM * 27MM * 4.1MM
Driver IC: SSD1306
Communication: IIC, only two I / O ports
No font: The software takes word modulo
Backlight: OLED self light, no backlight Interface:
VCC: 5V
GND: Ground
SCL: Serial Clock
SDA: Serial Data
Package Included:
1 X IIC OLED Moudle
