Sparkfun 9DoF IMU Sensor ICM-20948 Module
Rp435.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: SENSOR MODULE
Barang ini bergaransi, mohon baca kartu garansi yang kami lampirkan TERLEBIH DAHULU SEBELUM memakai barang, atau silahkan chat kami untuk info lebih lanjut.
Mohon tanya stock dulu sebelum membeli.

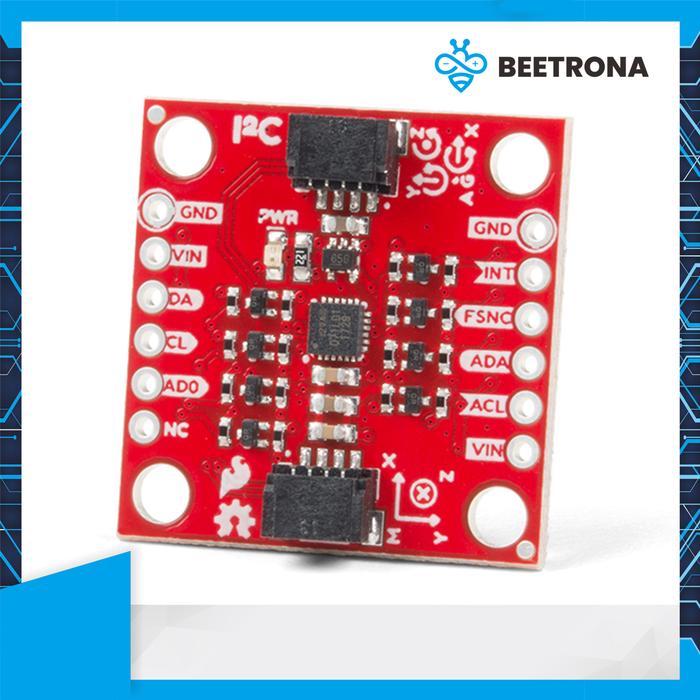

Sparkfun 9DoF IMU Sensor ICM-20948 Module
Specification :
- 1.95 V to 3.6 V supply voltage
- Triple-axis MEMS gyroscope with user-programmable full-scale range of ±250 dps, ±500 dps, ±1000 dps, and ±2000 dps
- Triple-axis MEMS accelerometer with programmable full scale range of ±2g, ±4g, ±8g, and ±16g
- Triple-axis silicon monolithic Hall-effect magnetic sensor with full scale measurement range to ±4900 µT
- I2C at up to 100 kHz (standard-mode) or up to 400 kHz (fast-mode) or SPI at up to 7 MHz for communication with registers
- On-board digital motion processor (DMP)
- Digital-output temperature sensor
- 2x Qwiic Connection Ports
- I2C Address : 0x69 (0x68 with Jumper)
untuk spesifikasi lebih lanjut silahkan cek website resmi sparkfun
Mohon tanya stock dulu sebelum membeli.
Sparkfun 9DoF IMU Sensor ICM-20948 Module
Specification :
- 1.95 V to 3.6 V supply voltage
- Triple-axis MEMS gyroscope with user-programmable full-scale range of ±250 dps, ±500 dps, ±1000 dps, and ±2000 dps
- Triple-axis MEMS accelerometer with programmable full scale range of ±2g, ±4g, ±8g, and ±16g
- Triple-axis silicon monolithic Hall-effect magnetic sensor with full scale measurement range to ±4900 µT
- I2C at up to 100 kHz (standard-mode) or up to 400 kHz (fast-mode) or SPI at up to 7 MHz for communication with registers
- On-board digital motion processor (DMP)
- Digital-output temperature sensor
- 2x Qwiic Connection Ports
- I2C Address : 0x69 (0x68 with Jumper)
untuk spesifikasi lebih lanjut silahkan cek website resmi sparkfun
