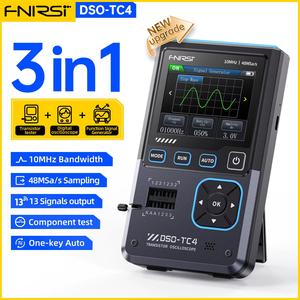

[Ready Preorder] FNIRSI DSO-TC4 3-in-1 Oscilloscope Signal Generator

Semua Produk Di Toko Kami PO (Personal Pre-Order) 7-10 Hari Tergantung Stok Dan Posisi Gudang. Harap Chat Terlebih Dahulu Sebelum Order Atau Anda Setuju Dengan Waktu Pre-Order Yang Kami Tetapkan Secara Default 15-Hari



Specifications:

- Model: DSO-TC4
- Languages: Chinese, English, German, Portuguese, Japanese, Spanish, Korean, Russian
- Screen: 2.8-inch TFT Color Screen (Brightness Adjustable)
- Power Supply: TYPE-C (5V/1A)
- Battery: 3.7V/1500mAh
- Size: 90x142x27.5mm
- Weight: 186g
Oscilloscope Parameters:
- Real-Time Sampling Rate: 48MSa/s
- Analog Bandwidth: 10MHz
- Input Impedance: 1MΩ
- Coupling Mode: AC/DC
- Test Voltage Range:
- 1:1 Probe: 80Vpp (+40V)
- 10:1 Probe: 800Vpp (+400V)
- Vertical Sensitivity: 10mV/div to 10V/div (X1 range)
- Vertical Displacement: Adjustable with indication
- Time Base Range: 50ns to 20s
- Trigger Mode: Auto/Normal/Single
- Trigger Type: Rising edge, Falling edge
- Trigger Level: Adjustable with indication
- Waveform Freeze: Yes (HOLD function)
- Automatic Measurement: Max, Min, For Avg, RMS, Vpp, Frequency, Cycle, Duty Cycle
Component Tester Parameters:
- Transistor Test: Supported
- Diode Test: Forward voltage drop 5V
- Zener Diode Test: 0.01 ~ 4.5V
- Field-Effect Transistor (FET) Test: JFET, IGBT, MIOSTET
- Unidirectional SCR Test: Trigger voltage 5V, Gate level
- Bidirectional SCR Test: Trigger current 6mA
- Capacitor Test: 25pF ~ 1000μF
- Resistor Test: 0.01Ω ~ 50MΩ
- Inductor Test: 10μH ~ 1000μH
- DS18B20 Test: Supported
- DHT11 Test: Supported
Signal Generator Parameters:
- Output Waveform: Supports 13 waveform outputs
- Waveform Frequency: 0 – 50KHz
- Square Duty Cycle: 0 – 100%
- Waveform Amplitude: 0.1V – 3.0V

Features
1. Versatile Functionality:
- Combines an oscilloscope, signal generator, and transistor tester in a single device, making it a comprehensive and practical tool for maintenance and R&D.
2. High-Performance Oscilloscope:
- Features a 48MSa/s real-time sampling rate and 10MHz
