XH-A153 PAM8403 Power Amplifier Lithium Battery Bluetooth 3W+3W Dual

DIY Supplies : ELECTRICAL
Origin : Mainland China

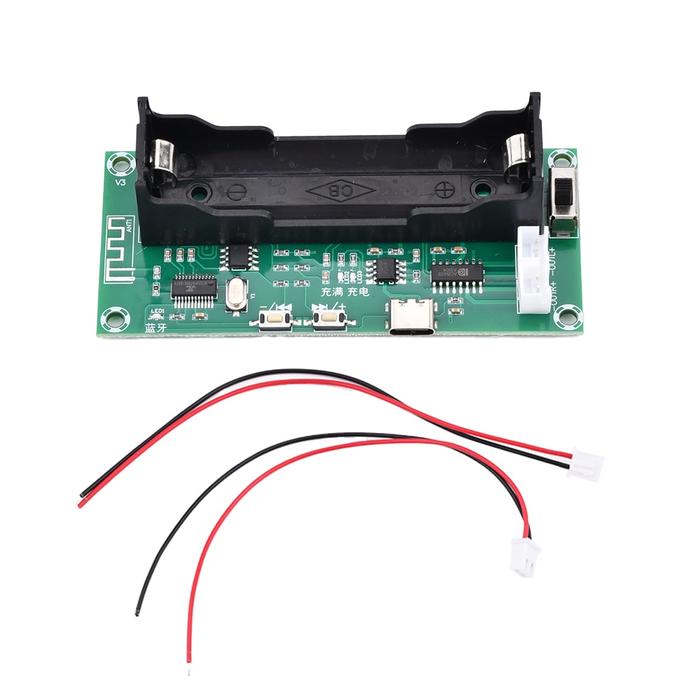

XH-A153 PAM8403 Power Amplifier Lithium Battery Bluetooth 3W+3W Dual Channel Audio AMP TYPE-C Interface With Speakers

Product features:

Newly upgraded Type-C interface: XH-A153 Bluetooth power amplifier board is upgraded with Type-C interface, which can be connected with charger, power bank and computer for charging. This design is easy to use in real life

High performance: This Bluetooth power amplifier board has high performance. The cost-effective amplifier module can be used together with the receiver amplifier card

Durable: This digital amplifier board is made of high-quality materials, supports 18650 battery power, and can maintain a long service life, so that you can use it for a long time

Easy to install: The installation of the audio amplifier is very simple and does not require particularly complex operations;

Dimensions and packaging: This Bluetooth power amplifier board is an amplified audio component with a maximum power of 5W+5W. The size is 93 x 42 x 25mm, and the distance between mounting holes is about 86 x 35mm. It is suitable for DIY speakers.

Main parameters:

Product name: Bluetooth audio amplifier board
Charging interface: Type-C
Product model: XH-A153
Function type: audio amplification
Power supply voltage: DC4.2V
Charging voltage: DC5V 500MA
Output power: 3W two
Bluetooth version: 5.0
Chip type: PAM8403 * 1
Number of channels: dual channel stereo
Magnification: 4 times
Transmission distance: 10m
Appearance dimension: 93 * 42 * 25mm
Installation hole pitch: 86 * 35mm

Common problem

1. Bluetooth connection failure.
Answer: The Bluetooth indicator flashes regularly when it works normally.
