New Foot Pedal Switch Current Controller Welding Machine Remote Control

Selamat Datang di toko kami, kami menjual produk produk import berkualitas tinggi dan kami membutuhkan waktu 20-30hr utk proses pengiriman, silahkan langsung di order kak,

Plug Type : EU plug
Is Smart Device : no
Usage : Remote Current Controller
Dimensions : 23.5x12x10cm (9.25x4.72x3.93")
Rated Duty Cycle : NA
Pilot Arc Current : NA
Pulse Frequency : NA
Arc Current : Various
Model Number : Foot Pedal
Brand Name : TywelMaster
Certification : CE
Origin : Mainland China
Color : Black
Pedal Material : Metal
Connection : 12pin

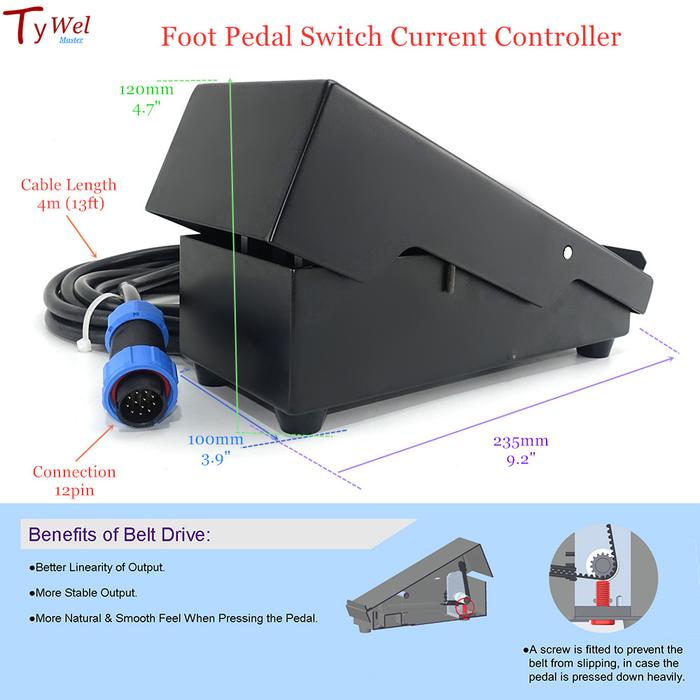

Foot Pedal Switch
Cable Length: 4m (13ft).
Pedal Material: Metal with black powder coating.
Variable Resistance: 10K.
Weight(net): about 1.8kg.
Dimension: 235x120x100mm (9.25x4.72x3.93), please reference picture.

Belt Drive is much better than other gear drive
It is more stable control, more natural & smooth feeling when pressing.

Connection: 12pin connector
The pin configuration is below:
The 8 and 9 of the 12pin aero socket is gun switch; The 1 and 2 of the 12pin aero socket is short circuit; The 3, 4 and fifth of the 12pin aero socket is pedal adjustable resistance (can reference picture).
(Attention: If your machine configuration is different, or connector is different, then you need to change it accordingly.)

Package:
1pcs.

Additional Offer:
We are offering full range professional welding & cutting products, visit our shop for more option.

Happy shopping, Terimakasih
