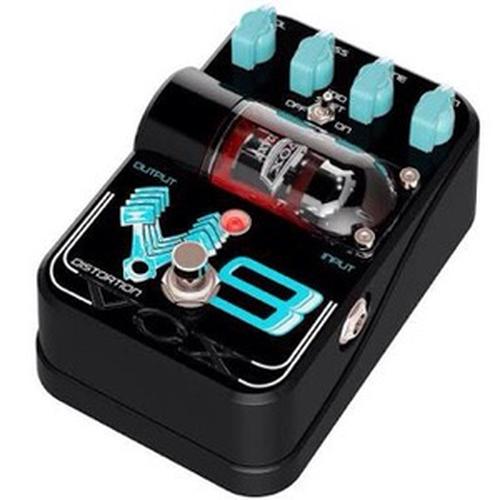

Vox V8 Distortion Guitar Effect Pedal

Main features :

Discrete circuitry - the result of a relentless design philosophy

True bypass design provides tonal confidence even when the effect is off

Tough die-cast body that stands up to the rigors of the road

Newly developed Hi-Volt technology allows the tube to operate at 200V, even on battery power

Gain control lets you adjust the tonal character

Heater current's slow start circuit ensures vacuum tube longevity

Controllable high-gain distortion that retains that retain the natural essence of your guitar

Highly usable "Mid Shift" switch adds extra presences tonal definition



1M

Output impedance: 2.2k

Vacuum tube: ECC83 / 12AX7

Connections: INPUT jack (guitar input), OUTPUT jack (line output)

Power: AA battery x 6

AC adapter: DC 9V (Option)

Vacuum tube operating voltage: 200 V

Consumption current: 240 mA

Battery Life: Approximately 7 hours

Dimensions: (W x D x H): 87 x 132 x 63 / mm, 3.43 x 5.20 x 2.48 / inch

Weight: 420 g / 14.81 oz (not including battery)

Accessories: AA alkaline battery x 6 (for verifying operation)
