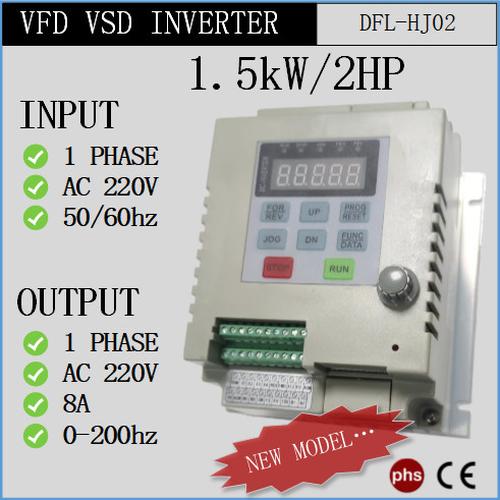

VFD VSD Inverter Input 1 Phase 220VAC Output 1Phase 220VAC NEW VERSION
Rp2.800.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Semua Etalase
DFL-HJ02-S1 series frequency converter is a mini type frequency converter, simple operation, convenient and durable, generous appearance and high cost performance, small in size and easy to install. The power input and motor output are separated and independent. They are suitable for Internal and external installation.
Main technical parameters of single in and single out converter:
1. Input power :single-phase AC 220 V (160 v-250 V);
2.output: single-phase AC 0-220 V;
3. Power level: 1.5KW,
4. Special motor control IC, pure SVPWM output;
5. IPM module is the core component of power drive, with built-in over-current, short-circuit, over temperature and other reliable protection;
6. Five digit digital tube display, five status indicator lights (display frequency, voltage, speed, counter, positive and reverse status, fault, etc.);
7. Output frequency range: 20-200hz, accuracy: 0.1Hz;
8. Analog input 0-5vdc, 0-10vdc, 0 / 4-20mA;
9. External extension line digital operation panel can be connected, and parameters can be copied freely;
10. X1-x4 multi-function input terminal can be combined with 16 section speed, and 16 section acceleration and deceleration time can be set independently;
11. Set V / F curve arbitrarily;
12. Multi function relay output, which can realize the relay output in various states such as operation, frequency arrival, external abnormality, etc
13. Automatic voltage stabilizing function, DC brake, speed tracking function of instant stop and restart, PLC program control, etc;
14. Perfect protection function: over voltage, under voltage, overload, over temperature, output short circuit protection;
15. Parameter password protection, limiting the use time and parameter recovery;
Note for this single-phase output inverter:
1. Cannot be used for dual-value capacitor motors, only one capacitor motor
2. It only runs in one direction, not forward and reverse
3.The starting current of single-phase motor is very large, so inverter can only be use below 1.1kW.
Main technical parameters of single in and single out converter:
1. Input power :single-phase AC 220 V (160 v-250 V);
2.output: single-phase AC 0-220 V;
3. Power level: 1.5KW,
4. Special motor control IC, pure SVPWM output;
5. IPM module is the core component of power drive, with built-in over-current, short-circuit, over temperature and other reliable protection;
6. Five digit digital tube display, five status indicator lights (display frequency, voltage, speed, counter, positive and reverse status, fault, etc.);
7. Output frequency range: 20-200hz, accuracy: 0.1Hz;
8. Analog input 0-5vdc, 0-10vdc, 0 / 4-20mA;
9. External extension line digital operation panel can be connected, and parameters can be copied freely;
10. X1-x4 multi-function input terminal can be combined with 16 section speed, and 16 section acceleration and deceleration time can be set independently;
11. Set V / F curve arbitrarily;
12. Multi function relay output, which can realize the relay output in various states such as operation, frequency arrival, external abnormality, etc
13. Automatic voltage stabilizing function, DC brake, speed tracking function of instant stop and restart, PLC program control, etc;
14. Perfect protection function: over voltage, under voltage, overload, over temperature, output short circuit protection;
15. Parameter password protection, limiting the use time and parameter recovery;
Note for this single-phase output inverter:
1. Cannot be used for dual-value capacitor motors, only one capacitor motor
2. It only runs in one direction, not forward and reverse
3.The starting current of single-phase motor is very large, so inverter can only be use below 1.1kW.
