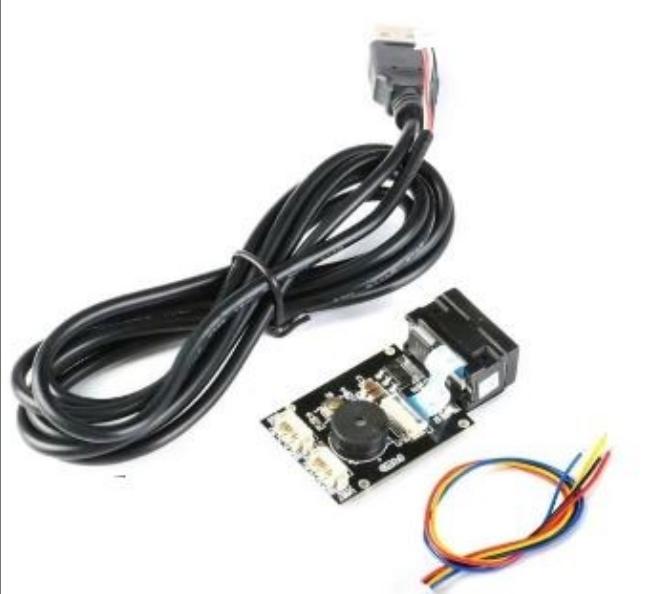

GM66 Qrcode Barcode Scanner for Raspberry Arduino Android USB Serial - GM 65
Rp410.000
Pilih ukuran: GM 65
ADA VARIAN
1. GM 65
2 GM65 DFRobot
3. GM 66
Perbedaan GM65, GM66
-GM66 tertutup kesing, GM65 terbuka (untuk di tanam di embed sistem/box lain)
-GM66 port USB dengan USB type A, GM65 port USB dengan socket SH pitch 1.25mm
Barcode dan QR Code Scanner bisa koneksi USB dan Serial/TTL/UART
*Bisa scan via tombol atau dengan Serial Command.
Support Arduino,ESP8266,STM32,Raspberry dll.
1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.
2. High-efficiency recognization and high upload speed for improving your working efficiency.
3. With buzzer for reminding you that the scanning successfully or not.
4. Compatible with USB and UART interface.
5. Over 180 configurable options
6. Macro support replace a string in the bar code with another
7. Programmable preamble postamble and termination
8.Superior reading performance utilizing advanced decoding algorithms
Model : GM65/GM66/
Type : Barcode Scanner
Decoding Ability
1D: EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect
2D: PDF417,QR Code ,Data Matrix ect
Interface : USB2.0 \ UART
Resolution : 0.10mm (4mil)
Operating Voltage : 5V
Operating Current : 120mA
Weight : 31g
Size : 62.3*42.5*24.5mm
Type of Illuminant : 617nm LED(Aimer), 6500K LEDs(Illumination)
LED Indicator Buzzer and bi-color light: Red-power, Blue-decoding Successfully
Scan Angle : Roll:0-360°, Pitch:±65°or greater, Yaw:±60°or greater
Scanning angle Inclination angle : 34°, Elevation angle 26°
Print Contrast : 30% minimum reflective difference
Reading Distance : 25 - 250mm
Operating Temperature : -20 degrees to 55 degrees
Temperature Humidity : 5% to 95% Relative humidity, Non-condensing
Light Levels : 0-85000LUX
manual : https://www.dropbox.com/sh/buysgr2aeutuub3/AADsvupiGseFm-6IowMBWGCOa?dl=0
Item yg dikirim sesuai Varian yg dipilih
1. GM 65
2 GM65 DFRobot
3. GM 66
Perbedaan GM65, GM66
-GM66 tertutup kesing, GM65 terbuka (untuk di tanam di embed sistem/box lain)
-GM66 port USB dengan USB type A, GM65 port USB dengan socket SH pitch 1.25mm
Barcode dan QR Code Scanner bisa koneksi USB dan Serial/TTL/UART
*Bisa scan via tombol atau dengan Serial Command.
Support Arduino,ESP8266,STM32,Raspberry dll.
1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.
2. High-efficiency recognization and high upload speed for improving your working efficiency.
3. With buzzer for reminding you that the scanning successfully or not.
4. Compatible with USB and UART interface.
5. Over 180 configurable options
6. Macro support replace a string in the bar code with another
7. Programmable preamble postamble and termination
8.Superior reading performance utilizing advanced decoding algorithms
Model : GM65/GM66/
Type : Barcode Scanner
Decoding Ability
1D: EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect
2D: PDF417,QR Code ,Data Matrix ect
Interface : USB2.0 \ UART
Resolution : 0.10mm (4mil)
Operating Voltage : 5V
Operating Current : 120mA
Weight : 31g
Size : 62.3*42.5*24.5mm
Type of Illuminant : 617nm LED(Aimer), 6500K LEDs(Illumination)
LED Indicator Buzzer and bi-color light: Red-power, Blue-decoding Successfully
Scan Angle : Roll:0-360°, Pitch:±65°or greater, Yaw:±60°or greater
Scanning angle Inclination angle : 34°, Elevation angle 26°
Print Contrast : 30% minimum reflective difference
Reading Distance : 25 - 250mm
Operating Temperature : -20 degrees to 55 degrees
Temperature Humidity : 5% to 95% Relative humidity, Non-condensing
Light Levels : 0-85000LUX
manual : https://www.dropbox.com/sh/buysgr2aeutuub3/AADsvupiGseFm-6IowMBWGCOa?dl=0
Item yg dikirim sesuai Varian yg dipilih
