HIOKI PW3390, PW8001, PW6001 POWER ANALYZER - PW3390

BUKAN HARGA SESUNGGUHNYA
BACA INFORMASI LENGKAP
.................................................
***HARGA BELUM TERMASUK PPN***

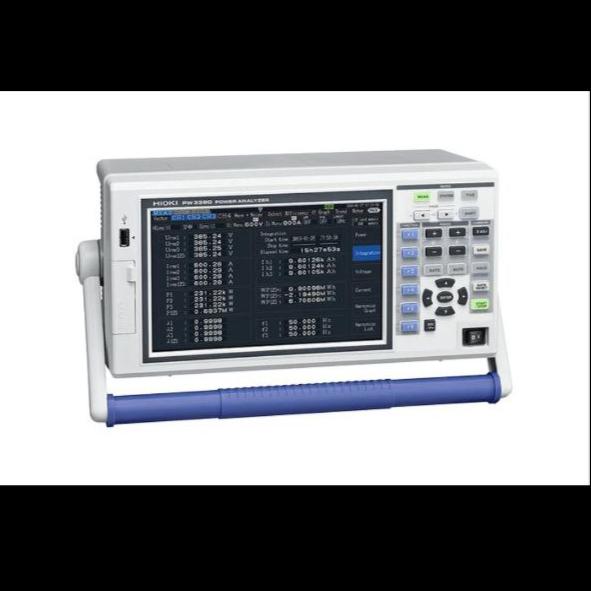

* HIOKI PW3390 POWER ANALYZER
DC, 0.5 Hz to 200 kHz, 3-phase 4-wire, High Precision Power Analyzer for Motor and Inverter Efficiency Analysis
Overview:
Hioki benchtop power meters and power analyzers are best in class power measuring instruments for measuring single to three-phase lines with a high degree of precision and accuracy. The PW3390 is a high-precision, broad-range power analyzer for measuring electrical power from DC to inverter frequencies, providing four input channels to support single- and three-phase inverter motor systems up to 4000 A AC/DC with superior accuracy. High-accuracy, high-speed calculation of transient-state power in 50 ms; harmonic analysis; display of instantaneous waveforms; noise analysis; and simultaneous parallel calculation of all parameters, including efficiency loss
Key Features:
- ±0.04% basic power accuracy, among the best in its class
- 200 kHz measurement band with flat amplitude and phase accuracy that extend to high frequencies
- Remarkably small and light footprint, enabling high-accuracy measurement to be easily carried out even in the field
- Send measured values to Hioki data loggers using a Bluetooth wireless technology compatible adapter (LR8410 Link-compatible products)
- Simultaneous measurement of multiple circuits and ability to acquire synchronized data using up to 8 devices (for 32 channels)
- Simple power measurement using clamp-on current sensors
- Measurement of current and power inputs and outputs as part of the new WLTP fuel efficiency international standard
- Earning Japan Calibration Service System (JCSS) Certification for DC Power Measurement.


* HIOKI PW8001 POWER ANALYZER
DC, 0.1 Hz to 5 MHz, 3-phase 4-wire, High Precision Power Analyzer for Motor and Inverter Efficiency Analysis
Key Features:
- World-class measurement accuracy: Basic accuracy ±0.03%, DC accuracy ±0.05%, 50 kHz accuracy 0.2% (*1)
- Accurate capture of power fluctuations caused by high-speed switching: Sampling performance 18-bit, 15 MHz, Noise Resistance (CMRR) 110 dB, 100 kHz (*1)
- Up to 8 power channels optimizing your measurement: 8-channel power measurement
- Accurately measure high-frequency, low-power-factor power: Current sensor automatic phase correction function (*2)
- Simultaneous analysis of 4 motors: 4-motor/2-motor simultaneous analysis function
- Integration of measurement data into CAN networks: CAN or CAN FD output function
- Intuitive and Quantitative Insights with Power Spectrum Analysis (PSA) function
- Safe evaluation of increasingly high-voltage solar inverters: 1500 V DC CAT II / 1000 V DC CAT III (*3)
- Earning Japan Calibration Service System (JCSS) Certification for DC Power Measurement. (*4)


* HIOKI PW6001 POWER ANALYZER
DC, 0.1 Hz to 2 MHz, 3-phase 4-wire, High Precision Power Analyzer for Motor and Inverter Efficiency Analysis
Overview:
A wide frequency range is required for power measurement due to the acceleration of switching devices, especially SiC. High accuracy, broadband, and high stability. The PW6001’s world-class technology-based fundamental performance makes in-depth power analysis a reality
Key Features:
- Exclusive current sensor phase shift function lets you maintain accuracy even in high frequency, low power factor applications
- Basic accuracy of ±0.02% (*2) for power measurement
- High noise resistance and stability (80 dB/100 kHz CMRR, ±0.01%/°C temperature characteristics)
- Accurate measurement even when the load is characterized by large fluctuations; TrueHD 18-bit resolution
- 10 ms data refresh while maintaining maximum accuracy
- DC accuracy of ±0.07%, which is key for stable, accurate efficiency measurement
- Wide frequency bandwidth of DC, or 0.1 Hz to 2 MHz
- Achieve true frequency analysis with high-speed 5MS/s sampling (18 bit)
- Synchronize 2 units for up to 12 channels (*4) in real time
- Special triggers to enable waveform analysis and motor analysis without the need for an oscilloscope
- Wideband harmonic analysis up to the 100th order with a 1.5 MHz band
- Send measured values to Hioki data loggers using a Bluetooth wireless technology compatible adapter (LR8410 Link-compatible products).
- Earning Japan Calibration Service System (JCSS) Certification for DC Power Measurement.


Kami merupakan distributor resmi HIOKI yang bergerak di bidang distribusi komponen Elektrikal: MV, LV, Automation komponen, Kontrol komponen, Wiring Accessories,Lighting, Peralatan instalasi listrik, Panel, aksesoris listrik dll. Kami menawarkan produk dengan harga yang kompetitif dan bersaing. Untuk pertanyaan harga negoisasi,term pembayaran, informasi stok dan spesifikasi produk lebih lanjut mohon untuk menghubungi kami.

Untuk respons lebih cepat bisa hubungi chat di Tokopedia kami.
