HIOKI RM3548, RM3542, RM3543, RM3544, RM3545, RM3545A RESISTANCE METER - RM3542
Rp51.561.000
Pilih type: RM3542
- Kondisi: Baru
- Waktu Preorder: 30 Hari
- Min. Pemesanan: 1 Buah
- Etalase: HIOKI
***DAN BUKAN HARGA SEBENAR NYA, MOHON CHAT ADMIN TERLEBIH DAHULU***
***HARGA BELUM TERMASUK PPN***
* HIOKI RM3548 RESISTANCE METER
High-precision Portable Resistance Meter Measures from µΩ to MΩ
Key Features:
• 0.02 % basic accuracy, 0.1 μΩ max. resolution, 1A max. testing current
• Measure from 0.0 μΩ (testing current 1 A) to 3.5 MΩ
• Easily record up to 1,000 data points in memory simply by applying the instrument’s probes
• Smoothly capture temperature-rise test data using interval measurement
• Portable design is ideal for maintenance and testing of large equipment

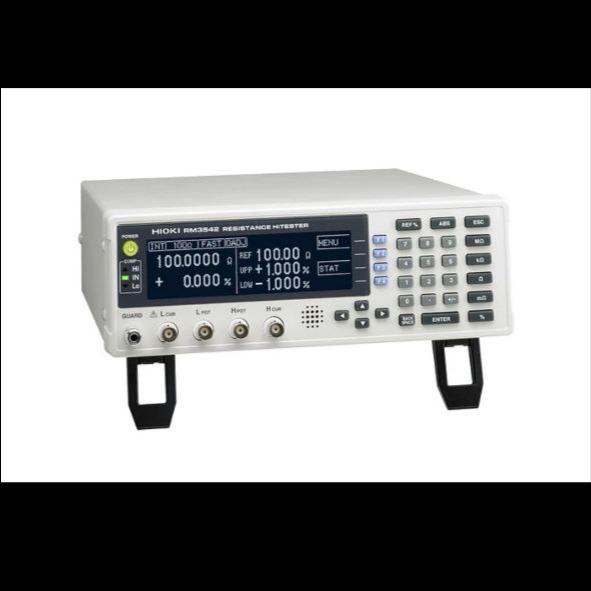

* HIOKI RM3542 RESISTANCE HiTESTER
Measure in as Fast as 0.9 ms, Optimized for Automated Systems
Key Features:
• High speed and accuracy maximize productivity in automated systems
• Multiple checking functions ensure proper contact for reliable measurements
• Low-power resistance mode measures chip inductors and EMC suppression components
• Supports sample inspections during the manufacturing process
* HIOKI RM3543 RESISTANCE HiTESTER
Resistance Meter for Ultra-low and Low Shunt Resistance
Key Features:
• Advanced enough to measure 0.1 mΩ shunts with room to spare at ±0.16% accuracy & 0.01μΩ resolution performance
• Superb repeatable measurement accuracy
• Advanced contact-check, comparator, and data export functions
• Intuitive user interface and strong noise immunity are ideal for automated systems
* HIOKI RM3544 RESISTANCE METER
Wide Range 30 mΩ to 3 MΩ DC Resistance Meters with Temperature Correction for High Speed Testing on Production Lines
Key Features:
• 0.02% basic accuracy, 1 μΩ max. resolution, 300 mA max. measurable current
• Measure from 0.000 mΩ (testing current 300 mA) to 3.5 MΩ
• Probe for guard jack use and increased measurement current yield an instrument that’s more resistant to noise
• Optional LED COMPARATOR ATTACHMENT and high-volume judgment tones combine to ensure PASS/FAIL judgments are communicated reliably in the noisy environment of the production floor
• EXT I/O interface with NPN/PNP support can accommodate a variety of automated production lines (-01 model)
* HIOKI RM3545 RESISTANCE METER
Featuring super-high accuracy and multi-channel capabilities
Key Features:
• 0.006% basic accuracy, 0.01 μΩ max. resolution, 1A max. testing current
• Measure from 0.00 μΩ (testing current 1 A) to 1200 MΩ
• Multiplexer Unit Z3003 (option) provides 20-channels of 4-terminal measurements for a complete assessment of multi-point signals (RM3545-02 only)
Low-power resistance measurement with an open voltage not exceeding 20 mV
High-speed, comprehensive productivity support delivers decisions in as little as 2.0 ms from start to finish
* HIOKI RM3545A RESISTANCE METER
New Heights in 100% Inspection.
Market leading precision tests for testing every weld or connection on your production line.
Key Features:
• 0.045% basic accuracy, 1 nΩ max. resolution, 1A max. testing current
• Measure from 1 nΩ (testing current 1 A) to 1200 MΩ
• Equipped with advanced features, ensuring precise resistance measurement (OVC, temperature measurement, and correction function)
• The RM3545A-2 can be equipped with up to two optional Z3003 Multiplexer Units, allowing it to measure up to 20 channels (using the 4-terminal method)
• High path resistance tolerance allows seamless integration into an automatic test system, eliminating concerns about wiring or contact resistance
- Advanced contact-check, comparator function, control, and communications features
Kami merupakan distributor resmi HIOKI yang bergerak di bidang distribusi komponen Elektrikal: MV, LV, Automation komponen, Kontrol komponen, Wiring Accessories,Lighting, Peralatan instalasi listrik, Panel, aksesoris listrik dll. Kami menawarkan produk dengan harga yang kompetitif dan bersaing. Untuk pertanyaan harga negoisasi,term pembayaran, informasi stok dan spesifikasi produk lebih lanjut mohon untuk menghubungi kami.
Untuk respons lebih cepat bisa hubungi chat di Tokopedia kami.
Note:
- Chat sebelum pembelian produk untuk tanyakan stok
- Informasi lebih lanjut untuk harga, stok dan detail produk bisa hubungi
whatsapp 0877 8711 2999
- website : www.cemandiri.com
- Harga tidak mengikat dan sewaktu-waktu dapat berubah.
Dipasarkan oleh Cemandiri.com
PT. Central Elektrindo Mandiri
Authorized Distributor
***HARGA BELUM TERMASUK PPN***
* HIOKI RM3548 RESISTANCE METER
High-precision Portable Resistance Meter Measures from µΩ to MΩ
Key Features:
• 0.02 % basic accuracy, 0.1 μΩ max. resolution, 1A max. testing current
• Measure from 0.0 μΩ (testing current 1 A) to 3.5 MΩ
• Easily record up to 1,000 data points in memory simply by applying the instrument’s probes
• Smoothly capture temperature-rise test data using interval measurement
• Portable design is ideal for maintenance and testing of large equipment
* HIOKI RM3542 RESISTANCE HiTESTER
Measure in as Fast as 0.9 ms, Optimized for Automated Systems
Key Features:
• High speed and accuracy maximize productivity in automated systems
• Multiple checking functions ensure proper contact for reliable measurements
• Low-power resistance mode measures chip inductors and EMC suppression components
• Supports sample inspections during the manufacturing process
* HIOKI RM3543 RESISTANCE HiTESTER
Resistance Meter for Ultra-low and Low Shunt Resistance
Key Features:
• Advanced enough to measure 0.1 mΩ shunts with room to spare at ±0.16% accuracy & 0.01μΩ resolution performance
• Superb repeatable measurement accuracy
• Advanced contact-check, comparator, and data export functions
• Intuitive user interface and strong noise immunity are ideal for automated systems
* HIOKI RM3544 RESISTANCE METER
Wide Range 30 mΩ to 3 MΩ DC Resistance Meters with Temperature Correction for High Speed Testing on Production Lines
Key Features:
• 0.02% basic accuracy, 1 μΩ max. resolution, 300 mA max. measurable current
• Measure from 0.000 mΩ (testing current 300 mA) to 3.5 MΩ
• Probe for guard jack use and increased measurement current yield an instrument that’s more resistant to noise
• Optional LED COMPARATOR ATTACHMENT and high-volume judgment tones combine to ensure PASS/FAIL judgments are communicated reliably in the noisy environment of the production floor
• EXT I/O interface with NPN/PNP support can accommodate a variety of automated production lines (-01 model)
* HIOKI RM3545 RESISTANCE METER
Featuring super-high accuracy and multi-channel capabilities
Key Features:
• 0.006% basic accuracy, 0.01 μΩ max. resolution, 1A max. testing current
• Measure from 0.00 μΩ (testing current 1 A) to 1200 MΩ
• Multiplexer Unit Z3003 (option) provides 20-channels of 4-terminal measurements for a complete assessment of multi-point signals (RM3545-02 only)
Low-power resistance measurement with an open voltage not exceeding 20 mV
High-speed, comprehensive productivity support delivers decisions in as little as 2.0 ms from start to finish
* HIOKI RM3545A RESISTANCE METER
New Heights in 100% Inspection.
Market leading precision tests for testing every weld or connection on your production line.
Key Features:
• 0.045% basic accuracy, 1 nΩ max. resolution, 1A max. testing current
• Measure from 1 nΩ (testing current 1 A) to 1200 MΩ
• Equipped with advanced features, ensuring precise resistance measurement (OVC, temperature measurement, and correction function)
• The RM3545A-2 can be equipped with up to two optional Z3003 Multiplexer Units, allowing it to measure up to 20 channels (using the 4-terminal method)
• High path resistance tolerance allows seamless integration into an automatic test system, eliminating concerns about wiring or contact resistance
- Advanced contact-check, comparator function, control, and communications features
Kami merupakan distributor resmi HIOKI yang bergerak di bidang distribusi komponen Elektrikal: MV, LV, Automation komponen, Kontrol komponen, Wiring Accessories,Lighting, Peralatan instalasi listrik, Panel, aksesoris listrik dll. Kami menawarkan produk dengan harga yang kompetitif dan bersaing. Untuk pertanyaan harga negoisasi,term pembayaran, informasi stok dan spesifikasi produk lebih lanjut mohon untuk menghubungi kami.
Untuk respons lebih cepat bisa hubungi chat di Tokopedia kami.
Note:
- Chat sebelum pembelian produk untuk tanyakan stok
- Informasi lebih lanjut untuk harga, stok dan detail produk bisa hubungi
whatsapp 0877 8711 2999
- website : www.cemandiri.com
- Harga tidak mengikat dan sewaktu-waktu dapat berubah.
Dipasarkan oleh Cemandiri.com
PT. Central Elektrindo Mandiri
Authorized Distributor
