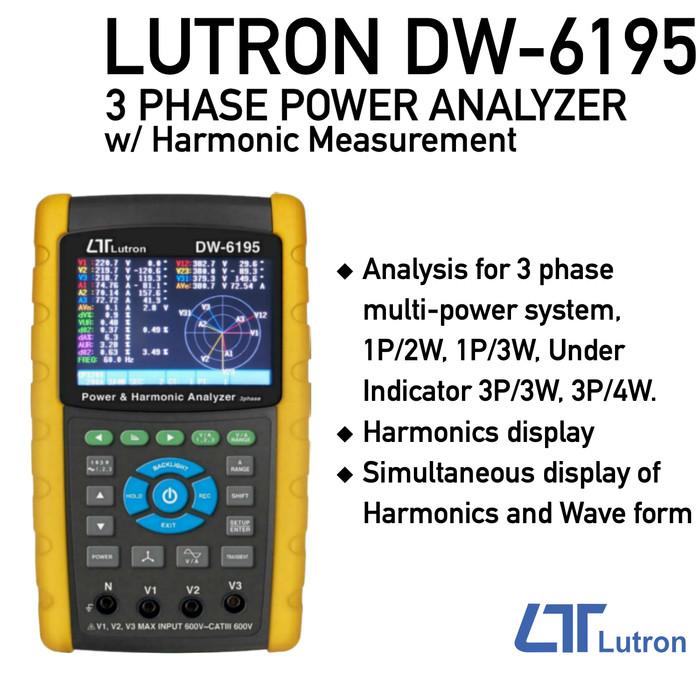

Lutron DW-6195 3 Phase Power Analyzer w/ Harmonic Measurement DW-6095 - GARANSI

FEATURES: ◆ Analysis for 3 phase multi-power system, 1P/2W, 1P/3W, 3P/3W, 3P/4W ◆ 3 current probes (CP-1201) are included, if change the current probes, the calibration procedures are not necessary ◆ Current probe input signal/ranges with selection: - Input signal (ACV): 200 mV/300 mV/500 mV/1 V/2 V/3 V - Ranges (ACA): 20 A/200 A/2000 A/30 A/300 A/ 3000 A ◆ Meter can cooperate the universal current probes ◆ Complete set with 4 PCs Test Leads, 4 PCs Alligator clips, 3 PCs Clamp Probe (CP-1201), AC to DC 9V adapter, 2GB SD memory card and Carrying bag ◆ Measurement: V (phase-to-phase), V (phase-to-ground), A (phase-to-ground) - KW / KVA / KVAR / PF (phase) - KW / KVA / KVAR / PF (system) - KWH / KVAH / KVARH / PFH (system) Phase angle ◆ Harmonics display (1-50th order) ◆ Simultaneous display of Harmonics and Wave form ◆ Display of Waveform with Peak Values ◆ Analysis of Total Harmonic Distortion (THD) ◆ Graphic Phase diagram with 3-Phase system parameters ◆ 3 phase Voltage or Current Unbalanced Ratio (VUR, AUR) and Unbalanced Factor ◆ Calculated Unbalanced Current through Neutral Line (An) ◆ Capture Transient events (including Dip, Swell and Outage) with programmable threshold (%) ◆ Programmable CT ratio (1 to 600) and PT ratio (1 to 1000) ◆ ACV input impedance is 10 Mega ohms ◆ Safety Standard: IEC 1010, CAT III 600V ◆ User can order the meter only (without the current probes) with the special request as intend to cooperate their own current probes EACH UNIT INCLUDES WITH: ◆ Instruction manual ◆ Test Leads (TL88-4AT), 1 Set (4 PCs) ◆ Alligator clips (TL88-4AC), 1 Set (4 PCs) ◆ Clamp Probe (CP-1201), 3PCs ◆ AC to DC 9V adapter, 1 PC ◆ SD card (2 GB), 1 PC ◆ Carrying bag, 1 PC
