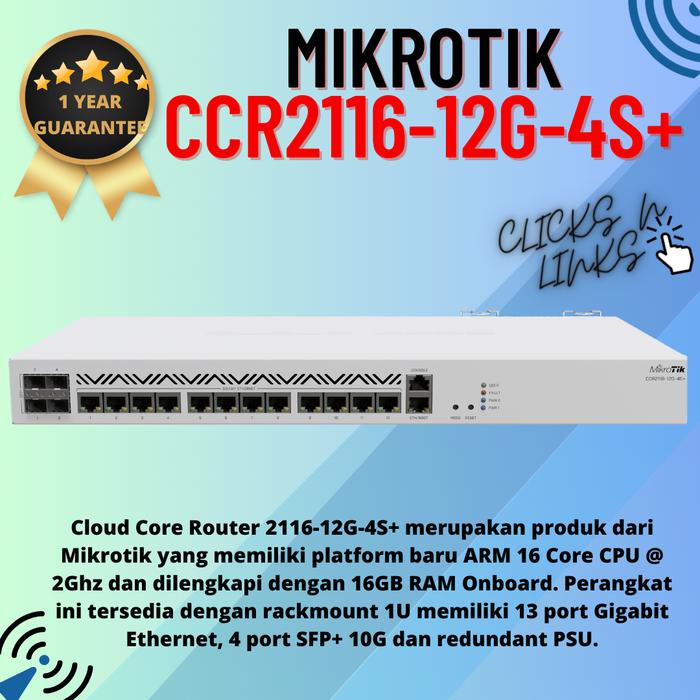

Mikrotik CCR2116-12G-4S+ 12 Gigabit + 4 SFP+ 10G

CCR2116-12G-4S+ allows you to forget about CPU limitations in your setup. Like its younger brother the amazing CCR2004, this router features the mighty Amazon Annapurna Labs Alpine CPU.

But with 16 cores running at 2 GHz, this CCR eats the other one for breakfast. For example, we see at least a 15% increase in single-core performance. And that is the most important aspect when it comes to heavy operations based on per-connection processing. Like queues, for example. CCR2116-12G-4S+ sets a new standard of single-core performance in the whole CCR product family! And it supports Layer 3 Hardware Offloading!

Specifications :
Product code : CCR2116-12G-4S+
Architecture : ARM 64bit
CPU : AL73400
CPU core count : 16
CPU nominal frequency : 2000 MHz
RouterOS license : 6
Operating System : RouterOS (v7 only)
Size of RAM : 16 GB
Storage size : 128 MB
Storage type : NAND
MTBF : Approximately 200'000 hours at 25C
Tested ambient temperature : -20C to 60C

Powering
Number of AC inputs : 2
AC input range : 100-240
Max power consumption : 72 W
Max power consumption without attachments : 60 W
Cooling type : 4 fans

Ethernet
10/100/1000 Ethernet ports : 13

Fiber
SFP+ ports : 4

Peripherals
Serial console port : RJ45
Number of M.2 slots : 1

Other
CPU temperature monitor : Yes
PCB temperature monitor : Yes
Mode button : Yes

Certification & Approvals
Certification : CE, EAC, ROHS
