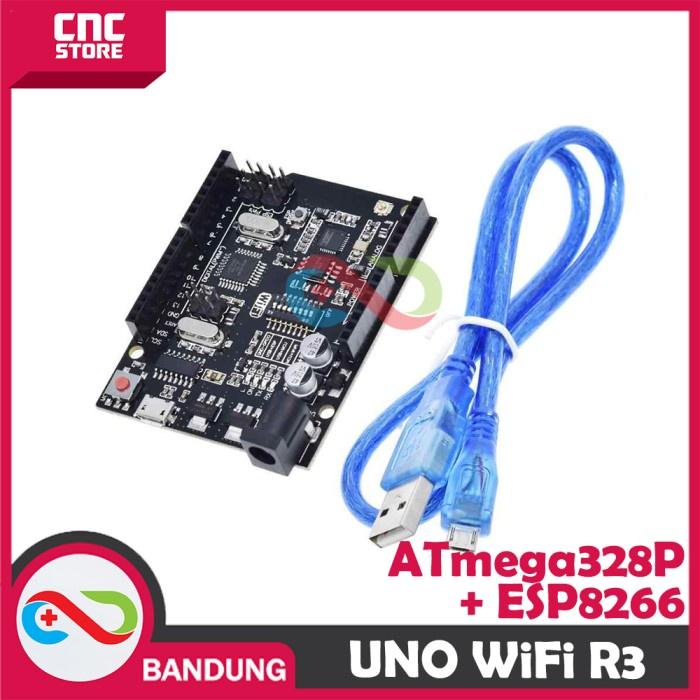

UNO R3 WIFI ATMEGA328P & ESP8266 UNO WIFI MCU BOARD - BOARD ONLY

BRD-0049
========


Deksripsi:
===============
Selamat datang di lapak kami... :-)


Barang bagus nih gan. kini hadir Uno WIFI ESP8266 dipersenjatai juga dengan flash memory 32 Mb serta tidak lupa CH340G USB-TTL converter...semuanya di dalam 1 board. Joss banget kan gan.
Produknya sangat berkualitas dengan proses QC yang ketat dan board yang tangguh


Switch Status dan Mode Selection :
=================================
# CH340 connect to ESP8266 (upload sketch)
1 = OFF; 2 =OFF; 3 = OFF; 4= OFF; 5= ON; 6=ON; 7=ON;8 =NoUSE


# CH340 connect to ESP8266 (Open Serial Monitor)
1=OFF; 2=OFF; 3=OFF; 4=OFF; 5=ON; 6=ON; 7=OFF; 8= NoUSE


# CH340 connect to ATmega328p (upload sketch)
1=OFF; 2=OFF; 3=ON; 4=ON; 5=OFF; 6=OFF; 7=OFF; 8=NoUSE


# CH340 connect to Atmega328p COM3 connect to ESP8266
1=ON; 2=ON; 3=ON; 4=ON; 5=OFF; 6=OFF; 7=OFF; 8=NoUSE


# Atmega328p+ESP8266
1=ON; 2=ON; 3=OFF; 4=OFF; 5=OFF; 6=OFF; 7=OFF; 8=NoUSE


#All modules work independent
1= OFF; 2=OFF; 3=OFF; 4=OFF; 5=OFF; 6=OFF; 7=OFF; 8=NoUSE


Spesifikasi :
===============
- Microcontroller : ATmega328
- IC Wi-Fi : ESP8266
- USB-TTL converter : CH340G
- Power Out : 5V-800mA
- Power IN. USB : 5V (500mA max.)
- Power IN. VIN/DC Jack : 9-24V
- Power Consumption : 5V 800mA
- Logic Level : 5V
- Wifi : Wi-Fi 802.11 b/g/n 2.4 GHz
- USB : MicroUSB
- Clock Frequency : 16MHz
- Operating Supply Voltag : 5V
- Digital I/O : 14
- Analog I/O : 6
- Memory Size : 32Mb
- Interface Type : serial\OTA
- Operating temperature : 40/+125
- LengthWidth : 53.3468.58mm
- Weight : 8
- antenna : Built-in external antenna


Aplikasi :
===============
- Kontrol elektronika
- 3D Printer
- Smart Home
- IOT Kontrol


PAKET:

===============
1x BOARD UNO WIFI R3 ESP82660 32MB FLASH CH340G
