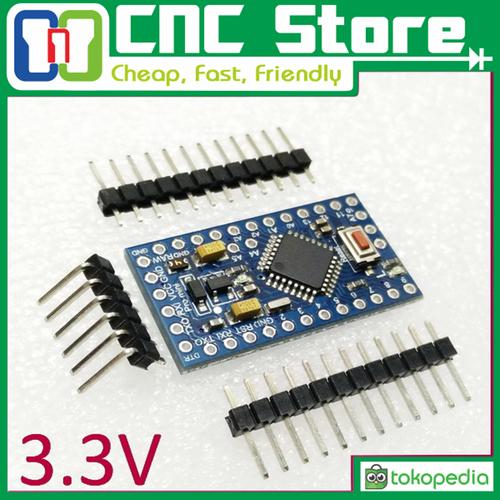

ARDUINO PRO MINI V3 ATMEGA328P 3.3V 8MHZ BOARD [BRD-0012]

Minimal Belanja Dalam Satu Pesanan adalah Rp10.000,- di luar ongkir ya kak, apabila kurang dari Rp10.000,- Pesanan TIDAK dapat kami proses :)

P/N : BRD-0012

====================

Description:

The Pro Mini is a microcontroller board based on the ATmega328 for Arduino. With 14 digital input / output pins (of which 6 can be used as PWM outputs), 8 analog inputs, an on-board resonator, a reset button, and holes for mounting pin headers. Six pin header can be connected to an FTDI cable to provide USB power and communication to the board.

Feature:

Using ATmel Atmega328P-AU MCU
TTL level serial port transceiver RX / TX
Six PWM ports D3, D5, D6, D9, D10, D11
Supporting serial download
Supporting external DC 3.3V ~ 12V power
Supporting 12V (or below) battery power

Specification:

Microcontroller: ATmega328
Operating Voltage: 3.3V
Input Voltage: 3.35V ~ 12V
Digital I/O Pins: 14 (of which 6 provide PWM output)
Analog Input Pins: 8
DC Current Per I/O Pin: 40mA
Flash Memory: 16KB (of which 2KB used by bootloader)
SRAM: 1KB
EEPROM: 512bytes
Clock Speed: 8MHz
Size: 33.3 x 17.6mm

Paket :
1. 1 x 3.3V 8MHz Pro Mini
2. pin header set
