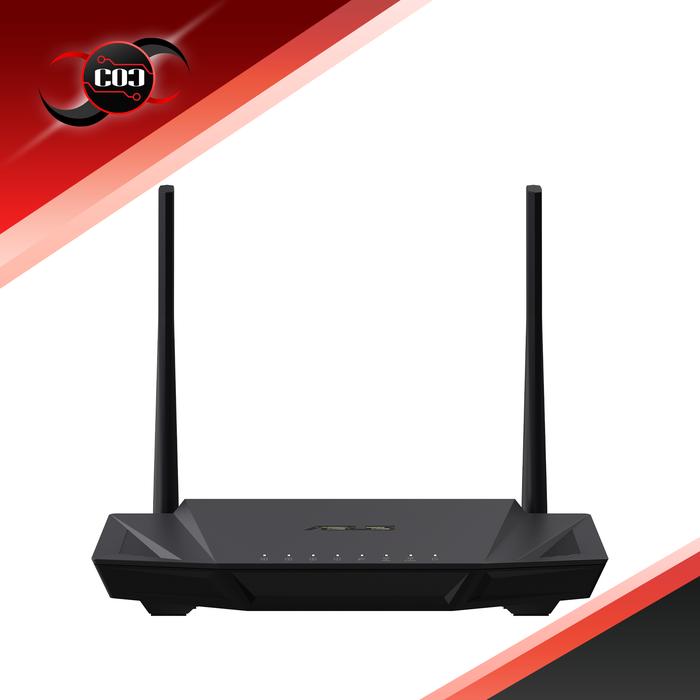

ASUS AX1800 Wireless AX Router RT-AX56U

Model Name
RT-AX56U

Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6

AX technology
Yes

Data Rate
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
802.11n : up to 433 Mbps
802.11ac : up to 867 Mbps
802.11ax (2.4GHz) : up to 574 Mbps
802.11ax (5GHz) : up to 1201 Mbps

Antenna
External antenna x 2

Transmit/Receive
2.4GHz 2x2
5 GHz 2 x 2

Processor
1.5GHz quad-core processor

Memory
256 MB Flash
512 MB RAM

Boosts speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80 MHz bandwidth

Operating Frequency
2.4G Hz / 5 GHz

Ports
RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4
USB 2.0 x 1
USB 3.1 Gen 1 x 1

Button
WPS Button, Reset Button, Power Switch

LED Indicator
Power x 1
2.4G x 1
5G x 1
LAN x 4
WAN x 1

Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 2 A current

AiMesh
AiMesh : Yes
Primary AiMesh router : Yes
AiMesh node : Yes

Router APP
ASUS Router APP : Yes

Game
Game Boost/acceleration : No
WTFast : No

Alexa
Support Alexa skil : Yes

IFTTT
Support IFTTT : Yes

AiProtection
AiProtection : AiProtection Pro
Router Security Assessment : Yes
Malicious site blocking : Yes
Two-Way IPS : Yes
Infected Device Prevention and Blocking ; Yes

Parental Control
Parental Control : Yes
Parental Control Customized Internet schedule : Yes

Traffic Control
Adaptive QoS : Yes
Bandwidth Monitor : Yes
Bandwidth limiter : Yes
Maximum Bandwidth limiter rule : 32
Traditional QoS : Yes
Maximum Traditional QoS rule : 32
Traffic Monitor : Yes
Real-time traffic monitor : Yes
Wired Traffic Monitor : Yes
Wireless Traffic Monitor : Yes
Traffic Analyzer : Yes
Traffic analysis period : Daily, Weekly, Monthly
Website history : Yes
