LX663 JRready JRD-HDT-48 Crimping tool 12-22AWG for Deutsch 12#, 16#, 20# Solid contacts Work with Deutsch DT Connectors
Rp4.929.000
- Kondisi: Baru
- Waktu Preorder: 30 Hari
- Min. Pemesanan: 1 Buah
- Etalase: Semua Etalase
JRready JRD-HDT-48 Crimping tool 12-22AWG for Deutsch 12#, 16#, 20# Solid contacts Work with Deutsch DT Connectors
**Mohon Chat/Noted Untuk Warna Dan Type Yang Tersedia **
- Semua Barang di Kirim Dari Luar Negri
- Estimasi 14-20 Hari Sampai Alamat
- Harga sudah termasuk biaya ongkir dr China to Jakarta + Biaya Pajak
- Seller Amanah, Packing Aman dan Secure
-Terima Kasih Sudah Berbelanja & Jangan Lupa Follow Toko Kami
Handle Style : Bent
Features : Mini
is_customized : Yes
Material : Mould Steel
Model Number : JRD-HDT-48
Type : Multifunctional Plier
DIY Supplies : Metalworking
Brand Name : JRREADY
Product Details
Core technology4-indent 8-impression crimping
High crimping accuracy8 Selector Numbers to chosen;Wire Range:12-22AWG (0.35-3.33mm)
Positioner & crimper integrated designpositioner axially adjustable

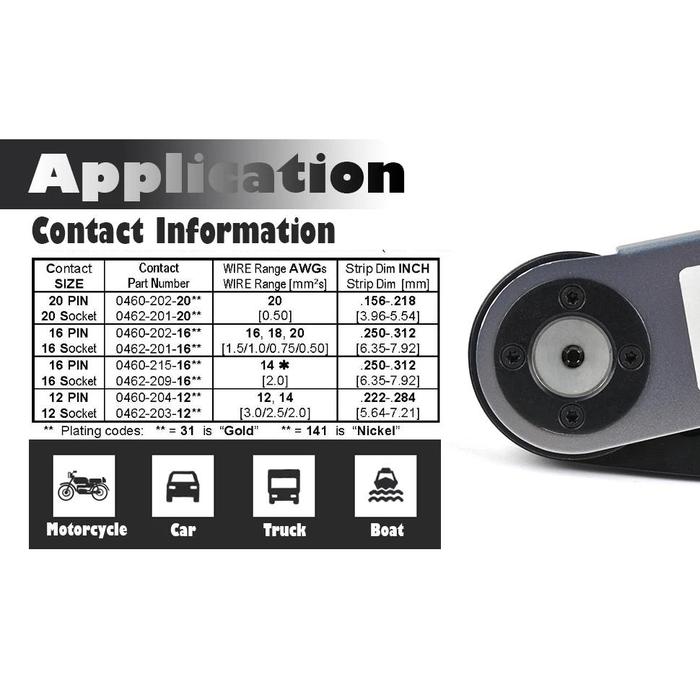

Crimpable contactWork With Size 12,16,20 Solid Contacts,Numbers Beginning With 0460 (Pin) and 0462 (Socket)
Matching connectorsDeutschTEDT series DTM Series, DTP Series connectors
4-indent 8-impression crimping
The crimping tool adopts curve propulsion mechanism, its applied force transfers through four curves in the head cavity of the right plier handle to the four indenters.
The four intenders do the centripetal linear motion, which makes its front-end teeth crimp the contact to complete the crimping process.
The cycle controlled precision ratchet assures the consistency of impression and the crimping of wires and contacts.
JRD-HDT-48 is widely used for DEUTSCH solid contacts (12#16#20#)
JRD-HDT-48 is widely used for DEUTSCH solid contacts (12#16#20#)which have a copper alloy body with nickel plating and a radial crimp type and work with DT, DTM & DTP Series sealed connectors.
These connectors are rugged and environmentally sealed connectors that are designed for cable to cable applications within the automotive industry.
8 Selector Numbers Selector
Selector No. (mm/AWG) IntenderDiameter mm/INCH
3.0/12# 0.049/1.24 (GO) --0.054/1.37 (NO GO)
2.5/14# 0.045/1.14 (GO) --0.050/1.27 (NO GO)
2.0 0.041/1.04 (GO) --0.046/1.17 (NO GO)
1.5 0.037/0.94 (GO) --0.042/1.07 (NO GO)
1.0/16# 0.033/0.838 (GO) --0.0385/0.978 (NO GO)
0.75/18# 0.030/0.76 (GO) --0.035/0.89 (NO GO)
0.50/20# 0.026/0.66 (GO) --0.031/0.79 (NO GO)
0.35/22# 0.022/0.56 (GO) --0.027/0.69 (NO GO)
**Mohon Chat/Noted Untuk Warna Dan Type Yang Tersedia **
- Semua Barang di Kirim Dari Luar Negri
- Estimasi 14-20 Hari Sampai Alamat
- Harga sudah termasuk biaya ongkir dr China to Jakarta + Biaya Pajak
- Seller Amanah, Packing Aman dan Secure
-Terima Kasih Sudah Berbelanja & Jangan Lupa Follow Toko Kami
Handle Style : Bent
Features : Mini
is_customized : Yes
Material : Mould Steel
Model Number : JRD-HDT-48
Type : Multifunctional Plier
DIY Supplies : Metalworking
Brand Name : JRREADY
Product Details
Core technology4-indent 8-impression crimping
High crimping accuracy8 Selector Numbers to chosen;Wire Range:12-22AWG (0.35-3.33mm)
Positioner & crimper integrated designpositioner axially adjustable
Crimpable contactWork With Size 12,16,20 Solid Contacts,Numbers Beginning With 0460 (Pin) and 0462 (Socket)
Matching connectorsDeutschTEDT series DTM Series, DTP Series connectors
4-indent 8-impression crimping
The crimping tool adopts curve propulsion mechanism, its applied force transfers through four curves in the head cavity of the right plier handle to the four indenters.
The four intenders do the centripetal linear motion, which makes its front-end teeth crimp the contact to complete the crimping process.
The cycle controlled precision ratchet assures the consistency of impression and the crimping of wires and contacts.
JRD-HDT-48 is widely used for DEUTSCH solid contacts (12#16#20#)
JRD-HDT-48 is widely used for DEUTSCH solid contacts (12#16#20#)which have a copper alloy body with nickel plating and a radial crimp type and work with DT, DTM & DTP Series sealed connectors.
These connectors are rugged and environmentally sealed connectors that are designed for cable to cable applications within the automotive industry.
8 Selector Numbers Selector
Selector No. (mm/AWG) IntenderDiameter mm/INCH
3.0/12# 0.049/1.24 (GO) --0.054/1.37 (NO GO)
2.5/14# 0.045/1.14 (GO) --0.050/1.27 (NO GO)
2.0 0.041/1.04 (GO) --0.046/1.17 (NO GO)
1.5 0.037/0.94 (GO) --0.042/1.07 (NO GO)
1.0/16# 0.033/0.838 (GO) --0.0385/0.978 (NO GO)
0.75/18# 0.030/0.76 (GO) --0.035/0.89 (NO GO)
0.50/20# 0.026/0.66 (GO) --0.031/0.79 (NO GO)
0.35/22# 0.022/0.56 (GO) --0.027/0.69 (NO GO)
