Dragino LSN50 Waterproof Long Range Wireless LoRa LoRaWAN Sensor Node - AS923

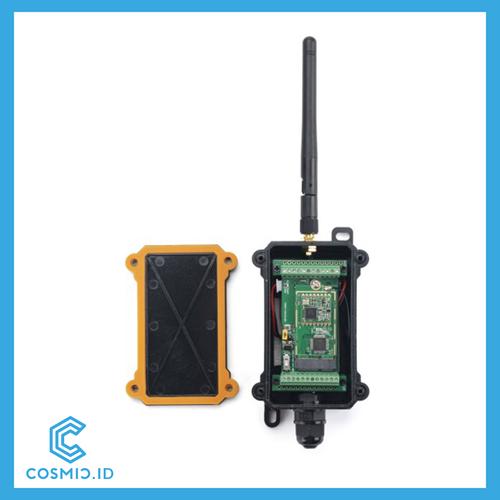

LSN50 LoRa Sensor Node is a Long Range LoRa Sensor Node. It is designed for outdoor use and powered by 4000mA or 8500mA Li/SOCl2 battery for long term use.LSN50 is designed to facilitate developers to quickly deploy industrial level LoRa and IoT solutions. It help users to turn the idea into a practical application and make the Internet of Things a reality. It is easy to program, create and connect your things everywhere. LSN50 wireless part is based on SX1276/SX1278 allows the user to send data and reach extremely long ranges at low data-rates.It provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption.It targets professional wireless sensor network applications such as irrigation systems, smart metering, smart cities, smartphone detection, building automation, and so on. LSN50 MCU part uses STM32l0x chip from ST, STML0x is the ultra-low-power STM32L072xx microcontrollers incorporate the connectivity power of the universal serial bus (USB 2.0 crystal-less) with the high-performance ARM Cortex-M0+ 32-bit RISC core operating at a 32 MHz frequency,a memory protection unit (MPU), high-speed embedded memories (192 Kbytes of Flash program memory, 6 Kbytes of data EEPROM and 20 Kbytes of RAM) plus an extensive range of enhanced I/Os and peripherals. Features: - STM32L072xxxx - SX1276/78 LoRa Wireless Modem - Pre-load with ISP bootloader - I2C,LPUSART1,USB - 18 x Digital I/Os - 2 x 12bit ADC; 1 x 12bit DAC - MCU wake up by UART or Interrupt - LoRa Modem - Preamble detection - Baud rate configurable - LoRaWAN 1.0.3 Specification - Software base on STM32Cube HAL drivers - Available Band:433/868/915/920 Mhz - IP66 Waterproof Enclosure - Ultra Low Power consumption - AT Commands to setup parameters - 4000mAh or 8500mAh Battery for Long term use Applications -Wireless Alarm and Security Systems -Home and Building Automation -Automated Meter Reading -Industrial Monitoring amp; Control -Automated Meter Read
