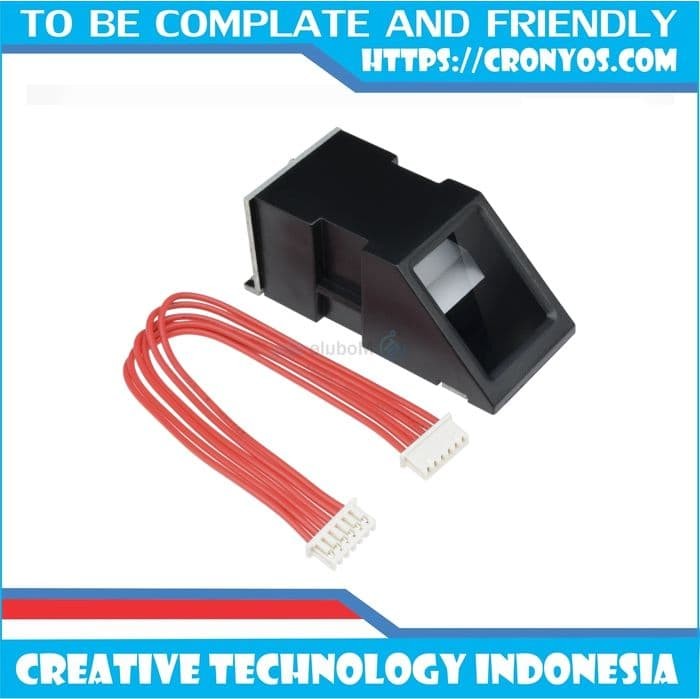

FPM10A Fingerprint Reader / Sensor Sidik Jari Arduino

Contoh Project : https://www.cronyos.com/cara-menggunakan-sensor-sidik-jari-fingerprint-dengan-arduino/ Deskripsi Produk Supply voltage: DC 3.6 ~ 6.0V / 3.3V Supplying Supply Current: Current: 120mA Peak current: 140mA Fingerprint image time: 1 .0 seconds Window size: 14 18 mm Matching mode: Match mode (1:1) Search mode (1: N) Signature File: 256 bytes Template files: 512 bytes Storage capacity: 1,000 Safety level: five (from low to high: 1,2,3,4,5) False Accept Rate (FAR): 0 .001% (security level 3) False Reject Rate (FRR): 1 .0% (security level 3) Search time: 1 .0 seconds (1:500, the mean) PC Interface: UART (TTL logic level) or USB2.0 / USB1.1 Communication baud rate (UART): (9600 N) bps where N = 1 ~ 12 (default value N = 6, ie 57600bps) Working environment: Temperature: -20 - +50 Relative Humidity: 40% RH-85% RH (non-condensing) Storage environment: Temperature: -40 - +85 Relative humidity: 85 % H (non-condensing) Dimensions (L W H): Split: Fingerprint sensor: 56 20 21.5mm
