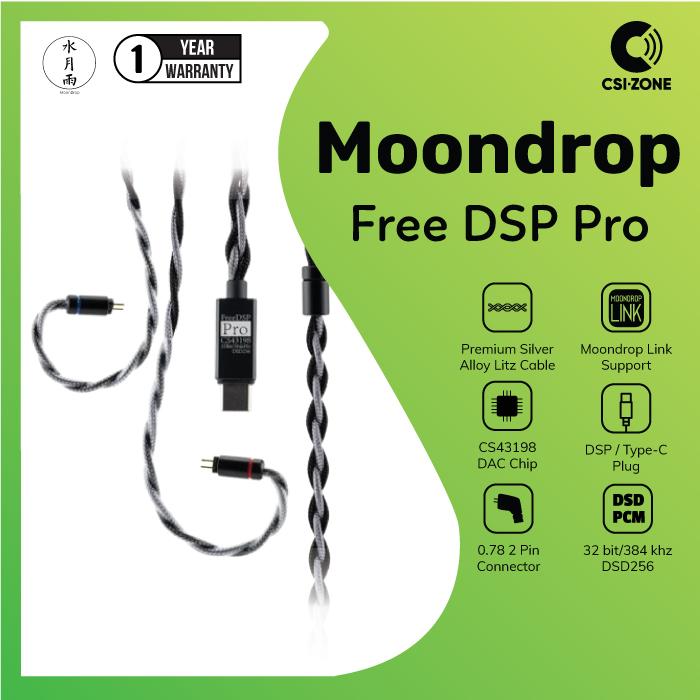

Moondrop FreeDSP Pro / Free DSP Pro Upgrade Cable For IEM Earphone With CS43198 Chip & DSP Type C

Customizable Tuning Interface
Through the Moondrop App, you can adjust filter types, frequency points, gain, and Q-values with a user-friendly professional tuning interface. A comprehensive headphone frequency-response database makes it easy to reference original or target curves as you fine-tune your sound.


Web-Based Tuning Compatibility
If your device isn’t compatible with the mobile app, the online “Tuning Community” on our website offers the same professional, comprehensive, and precise interface. Seamless interoperability between your account, the web database, and the mobile app makes tuning flexible and convenient.


One-Click EQ Presets
For a quick setup, choose any original and target response curve in the Moondrop App or on the web for one-button EQ. This streamlined approach lets you explore new sounds without the hassle of manual debugging.


Flagship Decoding Performance
Equipped with the CS43198 decoding chip and powered by precision LDO regulators, the FreeDSP Pro handles PCM up to 32-bit/384 kHz and DSD256. Enjoy reference-level HiFi quality with up to 127 dB dynamic range and total harmonic distortion as low as 0.00017%.


Premium Silver-Alloy Litz Cable
The included custom Litz-structure single-crystal copper cable uses 20% silver-alloy solder for exceptional signal transmission and a naturally laid-back timbre—identical in build quality to Moondrop’s Atami upgrade cable.


Specification:
Product: MOONDROP FreeDSP Pro
Product Type: Miniature DAC & AMP with DSP upgrade cable
Dynamic Range (A-weighted): 127 dB @ 1 kHz
THD+N (A-weighted): 0.00017 % @ 1 kHz
Output Amplitude: 2 Vrms @ 0 dBFS
Output Power: 80 mW + 80 mW @ 16 Ω (THD+N < 1 %)
Pin Connector: 0.78 mm 2-pin
Plug: USB-C
Cable Material: Litz OCC with high-purity silver-alloy solder
