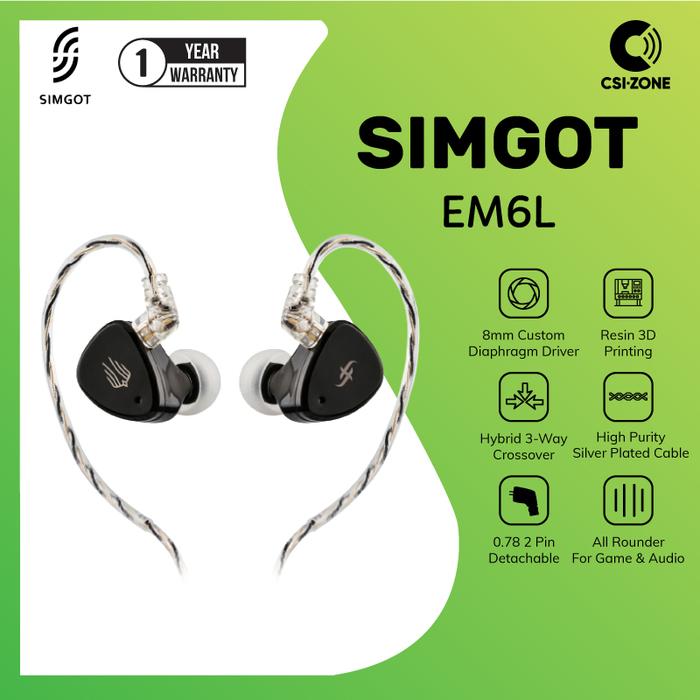

SIMGOT EM6L 1DD+4BA Hybrid In Ear Monitor Earphone

1DD + 4BA Hybrid Drivers

The EM6L adopts the classic acoustic structure of 1 DD+4 BA. We use a surging 8mm high-frequency special polymer diaphragm strong magnetic circuit double-chamber dynamic coil to bear the medium and low frequencies, and use two groups of dynamic iron to bear the medium and high frequencies respectively. Another 2 sets of BAs are adopted for the mid-highs and high frequency.

Three-way filter circuit Multi-channel sound damping tuning system

For the DD&BA drivers, EM6L first adopts a three-way filter circuit. Further relying on three independent acoustic tubes and sound dampers, and combining multi-dimensional scientific tuning methods including structural cavity volume allocation, independent acoustic tube design, position distribution and numerical selection of related acoustic dampers, etc., a multi-channel acoustic damping tuning system is constructed together.

The all-rounder of games and au- dio-visual is impeccable

HiFi headphones themselves can serve as high-level gaming headphones. The powerful and dynamic low-frequency response provides accurate positioning, while the spatial sound effects are fully immersive, allowing you to hear every trigger pull and footstep clearly. This gives you a competitive edge by allowing you to act faster and make strategic moves.

High-Purity OFC Silver-Plated Cable

The included silver-plated OFC cable ensures enhanced signal conductivity, allowing every musical nuance to be faithfully transmitted without compromise.


Specification:

Configuration 1DD+4BA, hybrid triple-crossover
Dynamic driver high-performance polymer composite diaphragm with dual-cavity driver
Impedance 26 15%(@1kHz)
Sensitivity 119dB/Vrms(@1kHz)
Frequency response: 8Hz-40kHz
Effective frequency response 20Hz-20kHz
Connector 0.78mm 2-pin
Housing technology high-precision resin 3D printing
