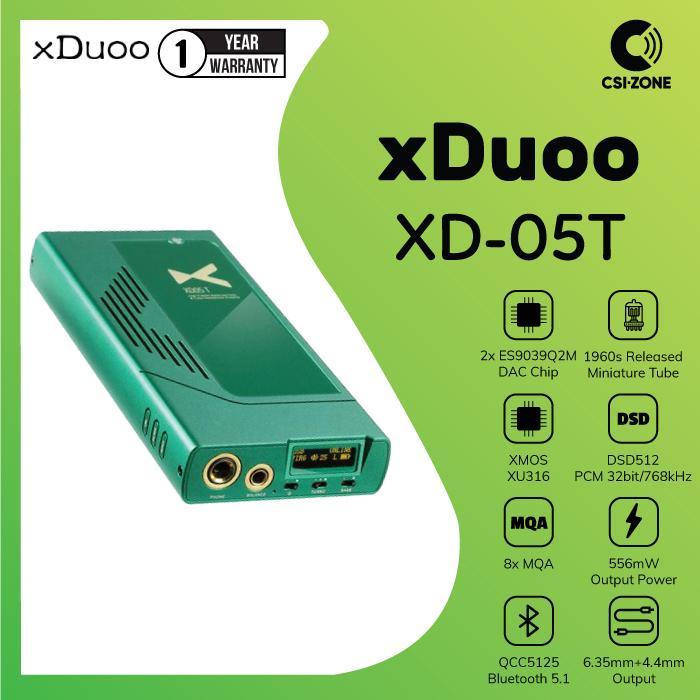

xDuoo XD-05T / XD05T / XD 05T Portable Bluetooth Tube DAC Amplifier

Classic Sound with Carefully Selected Vintage Tubes

Tubes still hold a special place in audio amplifiers, and the XD05T takes full advantage of that with two miniature tubes from the 1960s. These carefully selected, meticulously paired vintage tubes add a touch of even-order harmonics, delivering a soft, warm sound full of emotional depth.

Hybrid Circuit

xDuoo recognizes the crucial role of the preamplifier in shaping overall sound quality. To highlight the distinctive "tube sound," xDuoo integrates a vacuum tube into the preamplifier stage. For enhanced driving power, transistors are employed in the current amplification stage, delivering robust output. When driving 300-ohm headphones, the power reaches up to 556mW!

Rich and Practical Adjustment Functions

The XD05T offers three gain levels to adapt to a variety of headphones. The TURBO (L) setting is ideal for IEMs, TURBO (M) suits low-impedance headphones, and TURBO (H) is tailored for high-impedance headphones. This versatility ensures users can enjoy rich, optimized sound quality across different devices.

Desktop + Portable – Two Working Modes

The XD05T offers dual power options—battery and DC—allowing for both portable and desktop use. When you need desktop-level performance, simply connect a professional Hi-Fi power supply to switch to desktop mode, unlocking enhanced capabilities.

Note: The DC power supply is sold separately. Also, as the device generates heat during operation, avoid placing it in a bag or confined space while in use.

Specification

DAC Chip: Dual ESS ES9039Q2M
USB Chip: XMOS XU316
USB Support Formats: PCM 16-32Bit / 44.1kHz-768kHz, DSD64-512, MQA 1-8X
Bluetooth Chip: QCC5125, Bluetooth 5.1
Bluetooth Formats: SBC, AAC, APTX, APTX_LL, APTX_HD, LDAC
Unbalanced Output: Output Power: 32Ω @ 750mW (THD+N < 5%), 300Ω @ 83mW (THD+N < 5%)
Balanced Output: Output Power: 32Ω @ 1500mW (THD+N < 5%), 300Ω @ 565mW (THD+N < 5%)
Battery: 3.7V / 6000mAh
Battery Life: USB IN/SPDIF IN ≥ 4H, AUX IN ≥ 4.5H
Charging Time: about 3.5 hours (fast charging), 10 hours (slow charging)
Size: 16.8 x 7.8 x 2.3 cm
Weight: 0.4 kg
