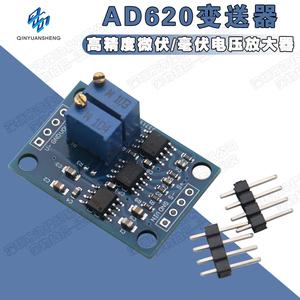

High Precision Microvolt/Millivolt Voltage Amplifier Small Signal Instrumentation Amplifier AD620 Transmitter
The AD620 is used as the main amplifier to amplify microvolts and millivolt voltages. Magnification 1.5-1000x, adjustable. High accuracy, low offset, and better linearity. Adjustable zero adjustment for improved accuracy. It can be used for amplification in AC and DC models.
High precision, low offset, AC, DC microvolt, millivolt voltage amplifier, can be used for AC, DC small signal amplification, microvolt, millivolt voltage amplification. (The use of the module requires a certain electronic foundation, if there is no basic customer, please be cautious to buy, our store provides technical support.) ）
Product Highlights:
1: Wide input range This product uses AD620 amplification, which can amplify micro volts and millivolts, which has higher amplification accuracy and good linearity than LM358 on the market, and the maximum voltage output range is ±9V.
2: The magnification factor uses a potentiometer to amplify the input signal, the magnification is up to 1000 times, and it can be adjusted only by a potentiometer.
3: Adjustable zero point Adjust the zero point through the zero potentiometer to improve the accuracy, and there will be no zero drift phenomenon to meet customer needs.
4: Negative voltage output The module uses 7660A negative voltage chip to output negative voltage (-Vin), which can be provided to customers to drive other dual power supply loads.
5: Mini type size is 32*22mm, 4 3mm positioning holes are evenly distributed around the perimeter, and the standard spacing on both sides is 2.54mm.
Specifications:
1. Input voltage: 3-11VDC. (Batch can be customized)
2. Magnification: 1.5-1000 times adjustable, zero point adjustable
3. Signal input voltage: 100uV--300mV
4. Signal output range: ± (Vin-2V)
5. Negative pressure output: greater than -Vin. Due to the problem of internal resistance of the output of the negative pressure
High Precision Microvolt/Millivolt Voltage Amplifier Small Signal Instrumentation Amplifier AD620 Transmitter
The AD620 is used as the main amplifier to amplify microvolts and millivolt voltages. Magnification 1.5-1000x, adjustable. High accuracy, low offset, and better linearity. Adjustable zero adjustment for improved accuracy. It can be used for amplification in AC and DC models.
High precision, low offset, AC, DC microvolt, millivolt voltage amplifier, can be used for AC, DC small signal amplification, microvolt, millivolt voltage amplification. (The use of the module requires a certain electronic foundation, if there is no basic customer, please be cautious to buy, our store provides technical support.) ）
Product Highlights:
1: Wide input range This product uses AD620 amplification, which can amplify micro volts and millivolts, which has higher amplification accuracy and good linearity than LM358 on the market, and the maximum voltage output range is ±9V.
2: The magnification factor uses a potentiometer to amplify the input signal, the magnification is up to 1000 times, and it can be adjusted only by a potentiometer.
3: Adjustable zero point Adjust the zero point through the zero potentiometer to improve the accuracy, and there will be no zero drift phenomenon to meet customer needs.
4: Negative voltage output The module uses 7660A negative voltage chip to output negative voltage (-Vin), which can be provided to customers to drive other dual power supply loads.
5: Mini type size is 32*22mm, 4 3mm positioning holes are evenly distributed around the perimeter, and the standard spacing on both sides is 2.54mm.
Specifications:
1. Input voltage: 3-11VDC. (Batch can be customized)
2. Magnification: 1.5-1000 times adjustable, zero point adjustable
3. Signal input voltage: 100uV--300mV
4. Signal output range: ± (Vin-2V)
5. Negative pressure output: greater than -Vin. Due to the problem of internal resistance of the output of the negative pressure
