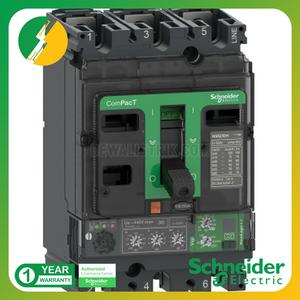

Schneider NSX100F 36kA AC 3P3D 100A Micrologic 4.2 (C10F3

MainRangeComPacT new generationProduct nameComPacT NSX new generationDevice short nameNSX100FProduct or component typeEarth leakage circuit breakerDevice applicationDistributionPoles description3PProtected poles description3D[In] rated current100 A at 40 C[Ue] rated operational voltage440 V AC 50/60 HzNetwork typeACNetwork frequency50/60 HzSuitability for isolationYes conforming to EN/IEC 60947-2Utilisation categoryCategory A[Icu] rated ultimate short-circuit breaking capacity85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-236 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-235 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-225 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-222 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-28 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2Performance levelF 36 kA 415 V ACTrip unit nameMicrologic 4.2Trip unit technologyElectronicTrip unit protection functionsLSoIRcontrol typeToggleCircuit breaker mounting modeFixedComplementary[Ui] rated insulation voltage500 V AC 50/60 Hz[Uimp] rated impulse withstand voltage8 kV[Ics] rated service short-circuit breaking capacity85 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-236 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-235 kA at 440 V AC 50/60 Hz conforming to IEC 60947-212 kA at 500 V AC 50/60 Hz conforming to IEC 60947-211 kA at 525 V AC 50/60 Hz conforming to IEC 60947-24 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2Mechanical durability50000 cyclesElectrical durability50000 cycles at 440 V In/230000 cycles at 440 V In20000 cycles at 690 V In/210000 cycles at 690 V InPower dissipation per pole5.8 W N5.8 W L1 and L33.9 W L2Mounting supportBackplateMounting positionHorizontal and verticalFlat on the backupside connectionFrontDownside connectionFrontConnection pitch35 mmProtection typeL : for overload protection (long time)So : for short time short-circuit protection with fixed delayI : for instantaneous short-circuit protecti
