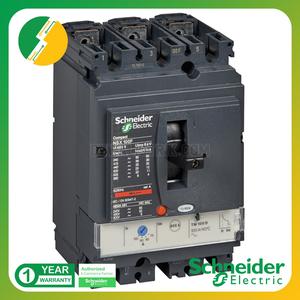

Schneider NSX100F 36KA TM100D 3P (LV429630)

Main range Compact product name Compact NSX product or component type Circuit breaker device short name Compact NSX100F device application Distribution poles description 3P protected poles description 3t network type AC network frequency 50/60 Hz [In] rated current 100 A ( 40 C ) [Ui] rated insulation voltage 800 V AC 50/60 Hz [Uimp] rated impulse withstand voltage 8 kV [Ue] rated operational voltage 690 V AC 50/60 Hz breaking capacity code F (36 kA) AC breaking capacity 8 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-222 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-225 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-235 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-236 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-285 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-210 kA at 600 V AC 50/60 Hz conforming to UL 50825 kA at 480 V AC 50/60 Hz conforming to UL 50885 kA at 240 V AC 50/60 Hz conforming to UL 508 [Ics] rated service breaking capacity Ics 11 kA 525 V AC 50/60 Hz conforming to IEC 60947-2Ics 35 kA 440 V AC 50/60 Hz conforming to IEC 60947-2Ics 36 kA 380/415 V AC 50/60 Hz conforming to IEC 60947-2Ics 4 kA 660/690 V AC 50/60 Hz conforming to IEC 60947-2Ics 85 kA 220/240 V AC 50/60 Hz conforming to IEC 60947-2Ics 12.5 kA 500 V AC 50/60 Hz conforming to IEC 60947-2 suitability for isolation Yes conforming to EN 60947-2Yes conforming to IEC 60947-2 utilisation category Category A trip unit name TM-D trip unit technology Thermal-magnetic trip unit protection functions LI trip unit rating 100 A ( 40 C ) protection type Overload protection (thermal) LShort-circuit protection (magnetic) I pollution degree 3 conforming to IEC 60664-1 Complementary control type Toggle mounting mode Fixed mounting support Backplate upside connecti
