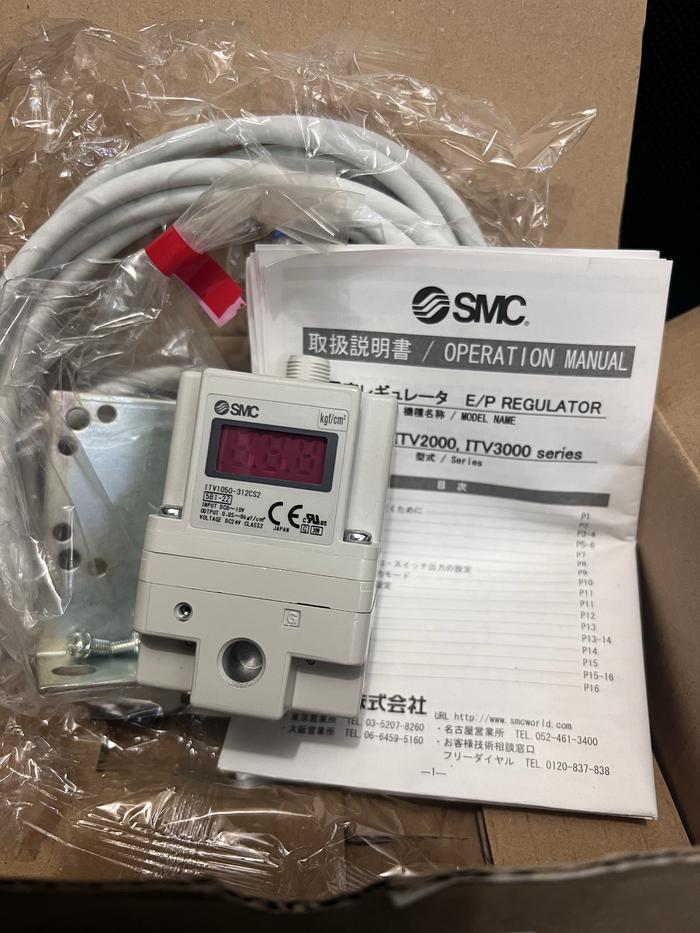

SMC ELECTRO PNEUMATIC REGULATOR type ITV1050-312CS2 Range 9bar 10.V

SMC ELECTRO PNEUMATIC REGULATOR Series ITV1050-312CS2 range 9bar / 0.9 mpa SMC ELECTRO PNEUMATIC REGULATOR Series ITV electro-pneumatic and electronic vacuum regulators control air/vacuum pressure steplessly in proportion to an electric signal. They are light weight in design with a bright and easy to read LED display. The monitor output is available either as analog output or switch output. The ITV series is IP65 equivalent. Controls air pressure in proportion to an electric signal. Available in MPa, kgf/cm?, bar, PSI, and kPa units. Pressure range of 0.005 to 0.9MPa. Available port size 1/4 inch Mounting bracket option. BRAND : SMC MAX FLOW RATE : 1500 L/min MAX SUPPLY PRESSURE : 0.2 MPa SET PRESSURE RANGE : 0.005 - 9bar VOLTAGE : 24V.DC ANALOG
INPUT : 0-10V.DC OUTPUT : 1 - 24.VDC PORT SIZE : Rc 1/4 INCH AMBIENT TEMPERATURE : 0 - 80 C CABLE : 3 m BRACKET : YES ( FLAT BRACKET) PRESSURE DISPLAY UNIT : MPa
