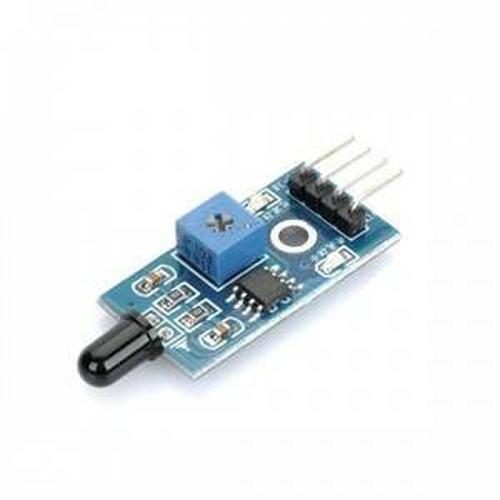

1 CH IR FLAME SENSOR 1 CHANNEL SENSOR API ARDUINO, FIRE FIGHTER ROBOT

1CHANNEL FLAME SENSOR adalah sensor untuk mendeteksi api dengan memanfaatkan sebuah sensor IR receiver yang peka terharap gelombang IR dengan rentang 700-1100nm yang biasanya berasal dari sumber api. Visit Tokoduino dot com Sangat cocok diaplikasikan dengan Arduino atau minsys lainnya untuk anda yang ingin merancang robot pendeteksi / pemadam api (fire fighter robot). Spesifikasi: - Using LM393 comparator - Output= Digital (D0) - Working voltage: 3.3V to 5V - Output format: Digital output (HIGH/LOW) - Wavelength detection range: 760nm to 1100nm - Detection angle: About 60 degrees, particularly sensitive to the flame spectrum - Lighter flame detect distance 80cm - Adjustable sensitivity (potentiometer adjustment) - The comparator output, the signal is clean, great driving ability, more than 15mA - With fixed bolt hole for easy installation - Can widely be used in Arduino DIY project.tduino - The flame sensor is most sensitive to flame, and reacts to ordinary light, is generally used in flame alarm etc. - The sensor and the flame should maintain a certain distance, in order to avoid high temperatures damage - Visit Tokoduino dot com - PCB size: 3.2 cm x 1.4 cm Prinsip Kerja Sensor: The item is able to detect the flame band respectively in the range of 700-1100 nm, short-wave near-infrared (SW-NIR), and is output via an electric signal (voltage signal). Kelengkapan: 1pcs 1 WAY FLAME SENSOR (1 CHANNEL) module.
