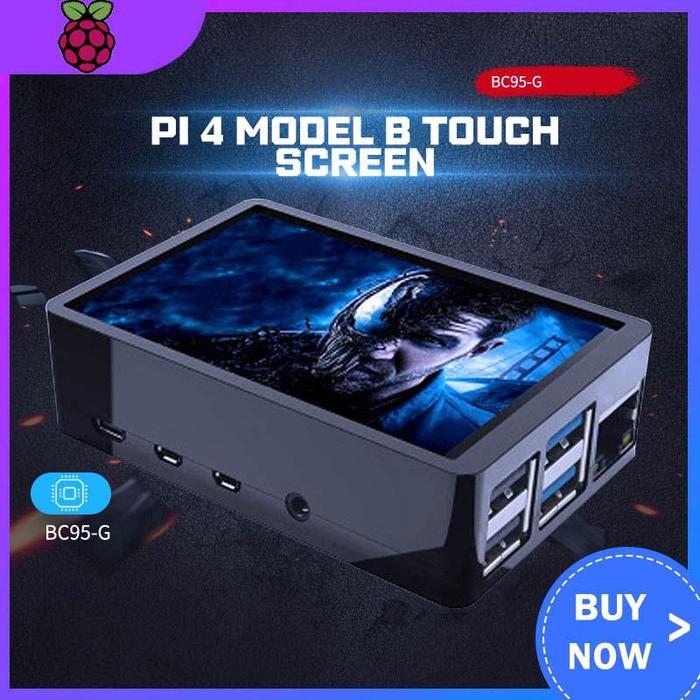

Raspberry Pi 4 B 3.5" inch LCD / Fan Case ABS Plastic Enclosure Box 4B - Case
Rp115.000
Pilih ukuran: Case
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: RASPBERRY PI
#1
NEW MHS 3.5 Inch Display
3.5 inches TFT 320x480 pixels, Resistive Touch, 50 fps:
The touch screen LCD is ready with 320×480 resolution, 50 FPS (Frame per second). Resistive touch control is being supported by the Raspberry Pi OS or Raspbian (directly-pluggable). However, we will still need to install the driver for graphic display :)
3.5-inch LCD fits perfectly on the Raspberry Pi Model B or B+ board as it nicely covers the whole Raspberry Pi mainboard. Combining with the 3.5 touch screen case for RPi 4B, you will get a perfect console
Features:
3.5-inch TFT LCD screen with Fan Connector
Compatible with the latest Raspberry Pi 4 Model B
Graphic drivers can be installed from Github, please refer to the steps here
Support Raspberry Pi OS/Raspbian, Ubuntu and Kali Linux Operating System
Match perfectly with the 3.5-Inch Touch Screen ABS case (not included)
3.5 inches LCD Spec:
Screen Type: TFT
Touch: Resistive Touch Control
Resolution: 480 * 320
Refresh Rate: 50Hz
Interface: SPI (Input 125MHz)
Backlight: LED
Backlight Current: 120mA
Power: 5V
Operating Environment: -20 ~ 70 ℃
Size: ~ 89 x 60 x 30mm/3.5 x 2.36 x 1.18
The Graphic driver is provided and can be downloaded for Raspberry Pi OS/Raspbian. It also supports Ubuntu and Kali Linux. Do follow the steps here:
http://www.lcdwiki.com/MHS-3.5inch_RPi_Display
#2
3.5inh RPI Display
LCD menggunakan interface SPI, jadi perlu disetting dulu dengan monitor dan keyboard.
Cara setting lihat di video youtube: https://www.youtube.com/watch?v=Fj3wq98pd20
Spesifikasi:
- Ukuran 3.5 inch
- LCD Interface: SPI
- Touch Screen Controller: XPT2046
- Backlight: LED
- LCD Type: TFT
- Resolution: 320*480 dots
- SPI Speed: 32MHz
- Color Levels Index: 65536
Isi Paket
1 x 3.5" LCD for Raspberry Pi + Stylus for 3.5 LCD Touch Screen
1 x case black
Paket belum termasuk Raspberry, microSD, dsb.
*sesuai Pilihan Varian
(LCD 3.5 inch dan Case bisa dibeli terpisah)
(terdapat 2jenis LCD, akan dikirim sesuai pilihan varian)
NEW MHS 3.5 Inch Display
3.5 inches TFT 320x480 pixels, Resistive Touch, 50 fps:
The touch screen LCD is ready with 320×480 resolution, 50 FPS (Frame per second). Resistive touch control is being supported by the Raspberry Pi OS or Raspbian (directly-pluggable). However, we will still need to install the driver for graphic display :)
3.5-inch LCD fits perfectly on the Raspberry Pi Model B or B+ board as it nicely covers the whole Raspberry Pi mainboard. Combining with the 3.5 touch screen case for RPi 4B, you will get a perfect console
Features:
3.5-inch TFT LCD screen with Fan Connector
Compatible with the latest Raspberry Pi 4 Model B
Graphic drivers can be installed from Github, please refer to the steps here
Support Raspberry Pi OS/Raspbian, Ubuntu and Kali Linux Operating System
Match perfectly with the 3.5-Inch Touch Screen ABS case (not included)
3.5 inches LCD Spec:
Screen Type: TFT
Touch: Resistive Touch Control
Resolution: 480 * 320
Refresh Rate: 50Hz
Interface: SPI (Input 125MHz)
Backlight: LED
Backlight Current: 120mA
Power: 5V
Operating Environment: -20 ~ 70 ℃
Size: ~ 89 x 60 x 30mm/3.5 x 2.36 x 1.18
The Graphic driver is provided and can be downloaded for Raspberry Pi OS/Raspbian. It also supports Ubuntu and Kali Linux. Do follow the steps here:
http://www.lcdwiki.com/MHS-3.5inch_RPi_Display
#2
3.5inh RPI Display
LCD menggunakan interface SPI, jadi perlu disetting dulu dengan monitor dan keyboard.
Cara setting lihat di video youtube: https://www.youtube.com/watch?v=Fj3wq98pd20
Spesifikasi:
- Ukuran 3.5 inch
- LCD Interface: SPI
- Touch Screen Controller: XPT2046
- Backlight: LED
- LCD Type: TFT
- Resolution: 320*480 dots
- SPI Speed: 32MHz
- Color Levels Index: 65536
Isi Paket
1 x 3.5" LCD for Raspberry Pi + Stylus for 3.5 LCD Touch Screen
1 x case black
Paket belum termasuk Raspberry, microSD, dsb.
*sesuai Pilihan Varian
(LCD 3.5 inch dan Case bisa dibeli terpisah)
(terdapat 2jenis LCD, akan dikirim sesuai pilihan varian)
