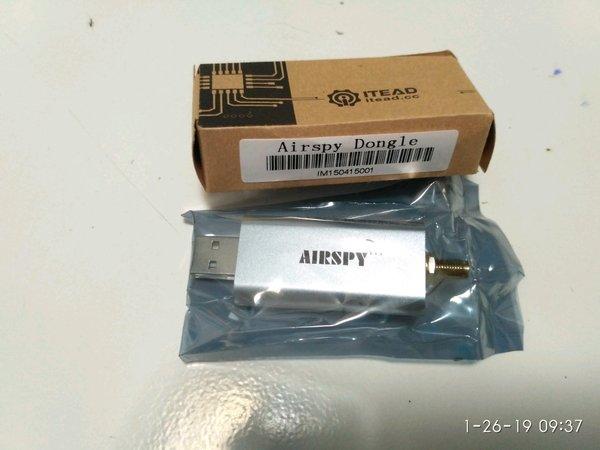

Airspy Mini High Performance Miniature SDR Dongle
Rp2.000.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: SDR
Airspy Mini High Performance Miniature SDR Dongle
Specification
Continuous 24 1800 MHz native RX range, down to DC with the SpyVerter option
3.5 dB NF between 42 and 1002 MHz
Tracking RF filters
35dBm IIP3 RF front end
12bit ADC (80dB Dynamic Range, 64dB SNR, 10.4 ENOB)
10, 6 and 3 MSPS IQ output
0.5 ppm high precision, low phase noise clock
Up to 6 MHz panoramic spectrum view
IQ or Real, 16bit fixed or 32bit float output streams
No IQ imbalance, DC offset or 1/F noise at the center of the spectrum that plagues all the other SDRs
4.5v software switchable Bias-Tee 100% Compatible with SpyVerter and High Performance LNA
No drivers required! 100% Plug-and-play on Windows Vista, Seven, 8, 8.1 and 10, and all Linux Flavors
Compatible with Raspberry Pi, Odroid, Pine64 and UP boards
Operating temperature: -10C to 40C
Typical Applications
VHF/UHF/SHF Radio Monitoring
Real Time Spectrum Analyzer
ADS-B, ATC receiver
Radio Astronomy
Satellite IF
Telemetry Receiver
Wide Band Scanner
Education
Ham Radio, etc.
Supported platforms
Windows Vista, 7, 8, 8.1 and 10 (For Windows XP, please contact Airspy Team)
Linux
*BSD
OSX
Raspberry Pi, Odroid, Pine64, UP
Specification
Continuous 24 1800 MHz native RX range, down to DC with the SpyVerter option
3.5 dB NF between 42 and 1002 MHz
Tracking RF filters
35dBm IIP3 RF front end
12bit ADC (80dB Dynamic Range, 64dB SNR, 10.4 ENOB)
10, 6 and 3 MSPS IQ output
0.5 ppm high precision, low phase noise clock
Up to 6 MHz panoramic spectrum view
IQ or Real, 16bit fixed or 32bit float output streams
No IQ imbalance, DC offset or 1/F noise at the center of the spectrum that plagues all the other SDRs
4.5v software switchable Bias-Tee 100% Compatible with SpyVerter and High Performance LNA
No drivers required! 100% Plug-and-play on Windows Vista, Seven, 8, 8.1 and 10, and all Linux Flavors
Compatible with Raspberry Pi, Odroid, Pine64 and UP boards
Operating temperature: -10C to 40C
Typical Applications
VHF/UHF/SHF Radio Monitoring
Real Time Spectrum Analyzer
ADS-B, ATC receiver
Radio Astronomy
Satellite IF
Telemetry Receiver
Wide Band Scanner
Education
Ham Radio, etc.
Supported platforms
Windows Vista, 7, 8, 8.1 and 10 (For Windows XP, please contact Airspy Team)
Linux
*BSD
OSX
Raspberry Pi, Odroid, Pine64, UP
