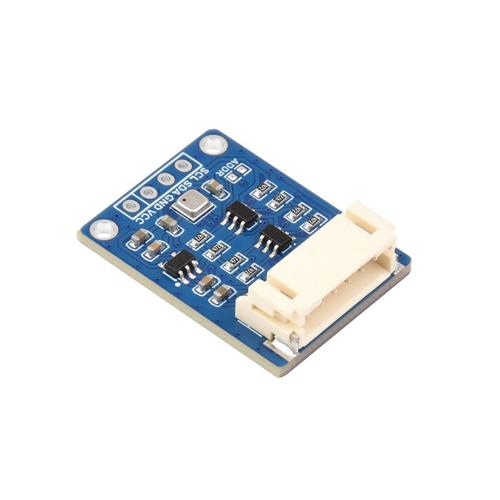

BME688 Environmental Sensor with AI Function

SKU : 296-487

BME688 Environmental Sensor with AI Function

Fitur:
Onboard BME68X sensor to measure temperature, humidity, barometric pressure, and gas
Supports I2C communication, I2C address configurable, with I2C bus cascading support
Supports SPI communication, enabled via CS pin (I2C bus by default)
Onboard voltage translator, compatible with 3.3V/5V level
Comes with online development resources and manual (examples for Raspberry Pi / Raspberry Pi Pico / Arduino / ESP32)

Spesifikasi:
DETECTION SUPPORT : Barometric pressure, Environmental temperature, Relative humidity, VOC and VSC gas change detection (supports IAQ calculation in combination with the software package, and integrated AI function)

COMMUNICATION INTERFACES : I2C and SPI

TEMPERATURE SENSING :
RANGE -40~85°C
ACCURACY ±1.0℃ (0~65℃) ±0.5℃ (0~65℃)
HUMIDITY SENSING :
RANGE 0~100%RH
ACCURACY ±3%RH

BAROMETRIC PRESSURE SENSING
RANGE 300~1100 hPa
ACCURACY ±1.0hPa (0~65℃) ±0.6hPa (0~65℃)
GAS SENSING
supports VOC gas change detection
supports VOC and VSC gas change detection

DIMENSIONS 27 × 20mm

Part List :
BME688 Environmental Sensor x1
PH2.0 6PIN cable (~20cm) x1

WIKI : http://www.waveshare.com/wiki/BME688_Environmental_Sensor
