IMX219 Camera Module NVIDIA Jetson & Raspberry Pi CM4 Camera Support M12/CS Mount Lenses High Image/Video Quality Camera Module

IMX219 M12/CS Mount CMOS Camera Module NVIDIA Jetson & Raspberry Pi CM4 merupakan modul kamera berbasis sensor Sony IMX219. Modul ini mendukung lensa M12 dan CS mount serta kompatibel dengan Raspberry Pi CM4 dan NVIDIA Jetson series. Modul ini memiliki dua port CSI (15 dan 22 pin) untuk konektivits mudah ke berbagai perangkat.

Kode Produk 296-582

Fitur:

Numerous Lens Choices: M12 & CS-mount Lenses Supported
Sony MX219 Sensor: 8-Megapixel Back-illuminated CMOS with Great Sensitivity
High Resolution: Capable of 3280 x 246 Pixel Static Images
Great Video Performance: Capture at 1080p30, 720p60, and 640x480p90
Easy to Integrate: 15/22-pin CSI (Camera Serial Interface) Supported
Spesifikasi:

Working Power Supply: 3.3V (Pin 15)
Sensor: Sony INX219 back-illumintaed sensor
Kualitas: 8 Megapixels
Resolusi: 3280 x 2464 Pixels
Sensor Image Area: 3.68 x 2.76mm (4.6mm diagonal)
Pixel Size: 1.12um x 1.12um
Interface: 15p-1.0 mipi
Sensitivity: 600mV/Lux-sec
Maximum Image Transfer Rate: 30 FPS for QSXGA
S/N Ratio: 38db
Dynamic Range: 69db

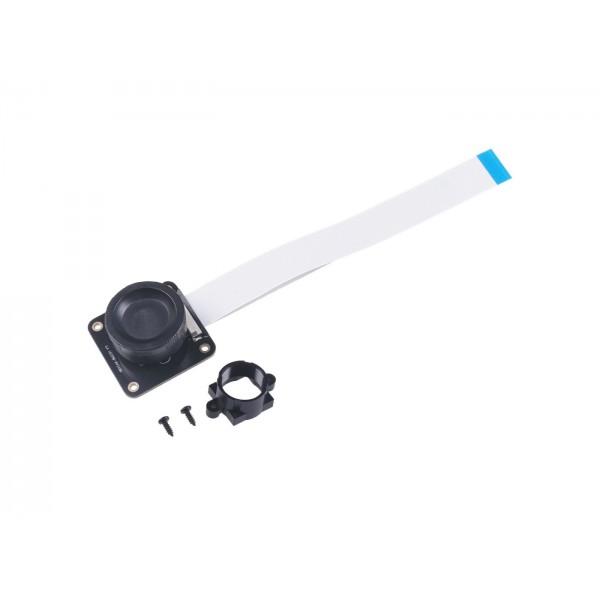

Paket Penjualan:

1x IMX219 Camera Sensor Module
1x CS Lens Mount
1x M12 Lens Mount
1x 15pin 125mm (4.92in) FFC (Flexible Flat Cable)
1x 22pin 150mm (5.9in) FFC
1x Dust Cap

Perhatian: Sensor kamera ini hanya support untuk Raspberry Pi CM4 (Compute Module 4) dan semua NVIDIA Jetson series.
