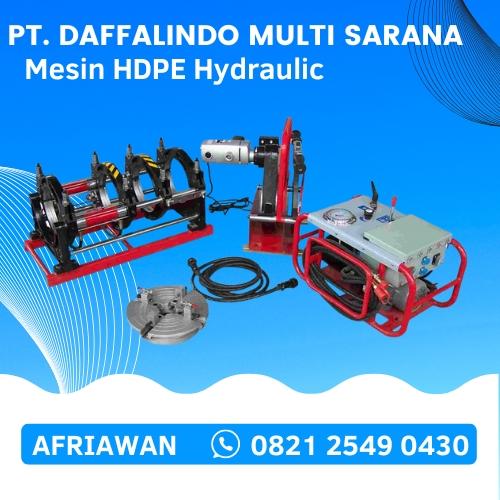

Mesin las pipa HDPE 160 Hydraulic (4 Clamp) | Mesin penyambung pipa HDPE murah 40-160 mm Hydraulic 4 clamp

BUTT FUSION SHD 160

• Basic Frame ( 4 Clamp )
• Heating Plate ( Teflon Coated )
• Milling Cutter
• Hydraulic Hoses with Quick Couplings
• Support untuk Milling Cutter and Heating Plate
• Tool Box

Aksesoris Tambahan :

• Data Logger
• Stub End Holder
• Support Roller
• Electrical Craner, Machine Body Trolley

Spesifikasi

- Bahan : PE, PP-R, PP, PB, PVDF
- Ukuran : 40 - 160 mm
- Clamp : 40, 50, 63, 75, 90, 110, 125, 140 mm
- Voltase : 220 V± 10 %, 50 Hz
- Heating Plate : 1.000 W
- Milling Cutter : 900 W
- Hydraulic Unit : 750 W
- Total Power : 2.650 W
- Suhu : 150 - 270°C
- Cylinder : 10.98 cm³
- Pressure : 0 – 60 bar
- Kapasitas Oli : 3 L / No. 46
- Berat ( Bersih / Kotor ) : 90 / 111 Kg
- Volume : 0.430 m³
- Basic Frame / Berat : 82 x 44 x 40 cm / 38 Kg
- Heating Plate / Berat : 37 x 5 x 35 cm / 3 Kg
- Milling Cutter / Berat : 31 x 24 x 32 cm / 6 Kg
- Support / Berat : 30 x 18.5 x 42 cm / 1.5 Kg
- Hydraulic Unit / Berat : 58 x 47 x 47 cm / 41.5 Kg
- Ukuran Box ( 2 Box Kayu ) : 93 x 54 x 51 cm / 67 x 51 x 51 cm
