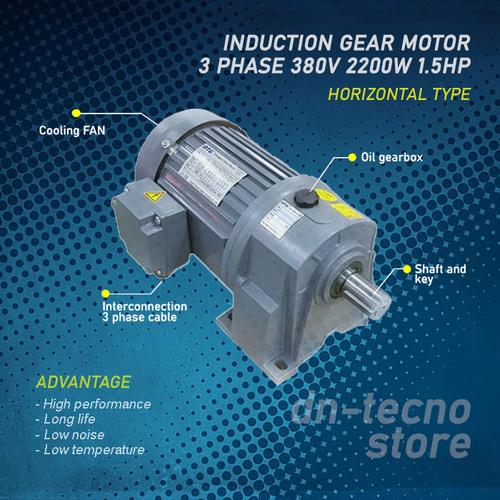

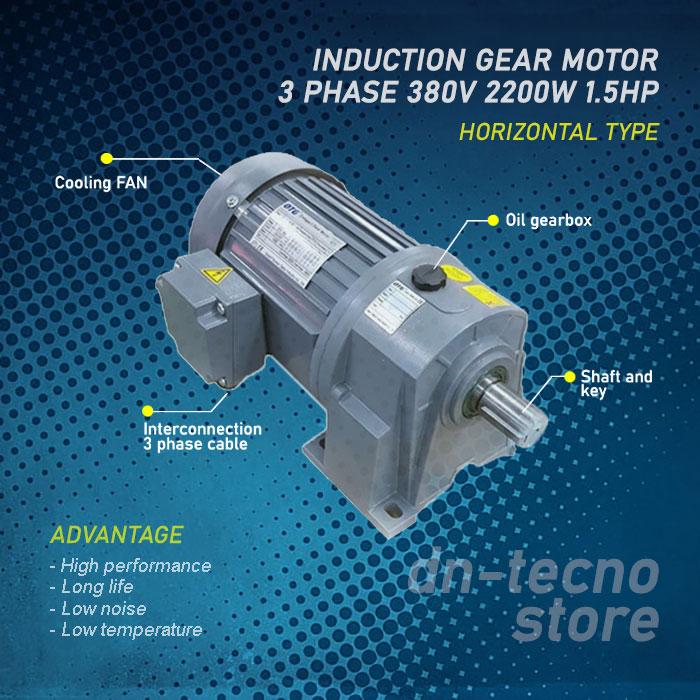

Motor gearbox AC 3 phase 380V 3HP 2.2KW horizontal - 5HP 3.7KW R7. 5

APPLICATION Conveyor Fan Centrifugal pump Line shafting Industrial machining (Milling, Lathe, etc) Compressor Crusher Agitator Reciprocating pump SPECIFICATION Product: Induction gear motor horizontal Gear and motor type: Standard Power: 2200W/ 2.2KW (3 HP) Voltage: 220/400V Pole: 4 Pole Speed: 1340~1400RPM IP: 54/ 55 Cooling system: Fan cooling type Starting: Direct start Time rating: Continuous running Insulation: F-class Environment: Temperature between -10~40 Celsius degree Standard: IEC-34, CNS-10919 Terminal box: With IP-55 class water proof aluminum Wiring diagram: Star/ Delta Dimension: 525x265x300mm Torque: base on table ratio gear RATIO amp; SHAFT DIAMETER Ratio 5 s/d 40 (Shaft 40mm) : Ratio 5, 7.5, 10, 15, 20, 25, 30, 40 Ratio 50 s/d 90 (Shaft 50mm) : Ratio 50, 60, 70, 80, 90 NOTE Silahkan pilih varian rasio yang di inginkan dan buat catatan pada saat order Mohon ditanyakan terlebih dahulu stock rasio yang ready INFO Jika ada kendala pengiriman dan faktur pajak,silahkan hubungi kami, WHATSAPP 0821-3000-5446
