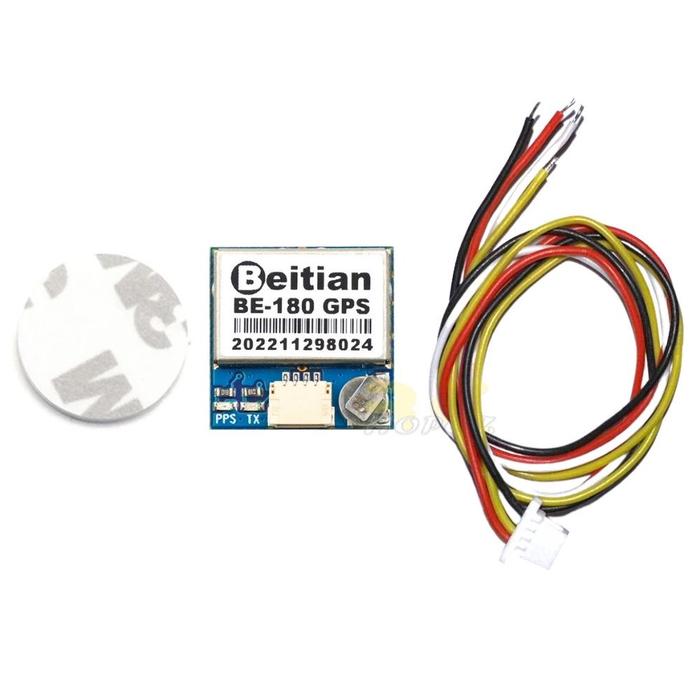

Beitian BN-180 Flight Control Smallest Mini GPS Module - BE-180
Rp190.000
Pilih seri: BE-180
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: FC, ESC, Stack, AIO dan GPS
Semua produk di etalase DOoFPV ready stock, bisa langsung dipesan. Proses kirim harian tiap Senin-Jumat jam 3 sore.
Pilih varian seri BN-180 (Chipset M8030) atau BE-180 (Chipset M10050)
Package Included
1 x BN-180 / BE-180 GPS Module
1 x Cable
Description
Dimension :18mm*18mm*6mm
Weight : 4.9g
Connector : 1.00mm spacing between the 4pins patch seat
Specification
Chipset : M8030-KT / M10050
Receiving Format :GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo
Channels : 72 Searching Channel
Sensitivity
Tracking : -167dBm
Reacquisition : -160dBm
Cold start : -148dBm
Hot start : -156dBm
Accuracy
Position Horizontal : 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)
Speed : 0.1m/sec 95% (SA off)
Timing : 1us synchronized to GPS time
Acquisition Time
Cold Start : 26s
Warm start : 25s
Hot start : 1s
Data and Update Rate
Support Rate : 4800bps to 921600bps,Default 9600bps
Data Level : TTL or RS-232,Default TTL level
Data Protocol : NMEA-0183 or UBX, Default NMEA-0183
Single GNSS : 1Hz-18Hz
Concurrent GNSS : 1Hz-10Hz,Default 1Hz
Operational Limits
Altitude : 50,000m Max
Speed: 515m/s Max
Acceleration : Less than 4g
Power consumption
VCC : DC Voltage 3.0V-5.5V,Typical: 5.0V
Current : Capture 50mA/5.0V
Operating temp :-40 C ~ +85C
Storage Temp : -40C ~ +105C
Indicator :
TX LED:blue.The data output, TX LED flashing
PPS LED:red.PPS LED not bright when GPS not fixed,flashing when fixed
Wiring:
GND,TX output,RX input,VCC(3.0v-5.5v)
