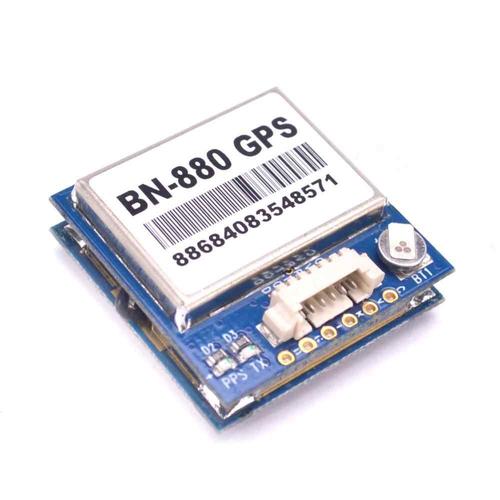

Beitian BN-880 Flight Control GPS Module with Compass

Semua produk di etalase DOoFPV ready stock, bisa langsung dipesan. Proses kirim harian tiap Senin-Jumat jam 3 sore.

BN-880 Flight Control GPS Module with Compass

GPS dengan Built-in HMC5883L compass bisa digunakan untuk Open Source Flight controller (Betaflight, Inav, Ardu, dsb)

Model:BN-880
Power Supply:DC Voltage 2.8V~6.0V,Typical:3.3V or 5.0V
Consumption:Capture 50mA@5V
Receiving Format:GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
Receiving Channel:72 Searching Channel
Receiving Sensitivity:Trace -167dBm
Capture-148dBm
Positioning Time:Cold Start:avg26s
Warm Start:avg25s
Hot Start:avg3s
Level Positioning Precison:2m At Open Wind
Output Frequency:1Hz-10Hz,Default 1Hz
Speed Precison:0.1 m/s (Without Aid)
Acceleration Precison:0.1 m/s (Without Aid)
Dynamic Characteristics:Max Height:18000m
Max Speed:5153m/s
Max Acceleration:4G
UART Interface:UART Port:TXDA and RXDA
Support Rate:4800bps to 115200bps,Default 38400dps
Working Temperature:-40℃-+85℃
Storage Temperature:-40℃-+85℃
Size:28mm x 28mm x 10mm
Weight:10g
The Module’s Pins:SDA,GND,TX,RX,VCC,SCL

Features:
GPS Module,Dual Module Compass
With electronic compass IC HMC5883L
1.25mm spacing between the 6pins patch seat
