BetaFPV Case for GoPro Hero Lite Camera

Semua produk di etalase DOoFPV ready stock, bisa langsung dipesan. Proses kirim harian tiap Senin-Jumat jam 3 sore.
Join whatsapp group DOoFPV untuk info barang baru : https://bit.do/doofpv
============================================================

Bisa untuk GoPro Hero 6 dan GoPro Hero 7 - TANPA BEC BOARD

Silahkan ikuti tutorial bongkar pasang yang ada di komunitas GoPro Lite Whoop.

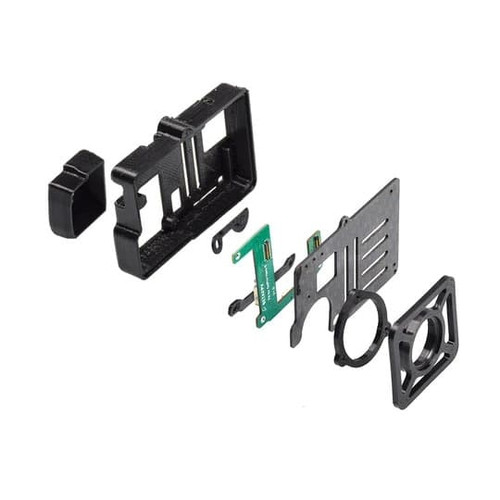

Package

1 * Case for GoPro Lite Camera
2 * Shims to fill small gaps
1 * Pack of Screws

Bullet Point

BEC Board is specially designed for Naked GoPro Hero which weighs about 1.5g, make your naked GoPro lighter and easier to install on your drone.
The BEC output voltage is 5V@2A, avoid the accident of power off which is caused by the insufficient power supply for the FC board.
Integrated GoPro stock buttons, Power/Mode Button and Record Button.
Integrated GoPro stock LED to know the status of the camera.
Pad is available for pilot to control the GoPro recording via the radio transmitter.
With the pluggable connector, which is easier to connect with your flight controller for power supply and recording.

Specification

Item: Case for GoPro Lite Camera

How to Assemble

Step 1: Assemble the BEC board on the GoPro motherboard and put the shim 1 and shim 2 to fill small gaps between them.
Step 2: Hold the camera lens and the camera board at the same time, be careful when you assemble the board on the case.
Step 3: Screw the GoPro motherboard with the M1.4*5 screws as shown below
Step 4: Install the carbon fiber board, and screw the board with M1.4*8 screws as shown below.
Step 5: Install the camera lens holder as shown below and screw the camera lens with M1.4*12 screws.
Step 6: Install the ND filter holder and camera board holder to make it done.
