FullSpeedRC FSD Lucky Box Buzzer

Semua produk di etalase DOoFPV ready stock, bisa langsung dipesan. Proses kirim harian tiap Senin-Jumat jam 3 sore.
Join whatsapp group DOoFPV untuk info barang baru : https://bit.do/doofpv
============================================================

Buzzer yang dapat tetap bunyi walau baterai utama lepas

Download Manual
http://www.fullspeedrc.com/u_file/1808/file/d138c21aac.pdf

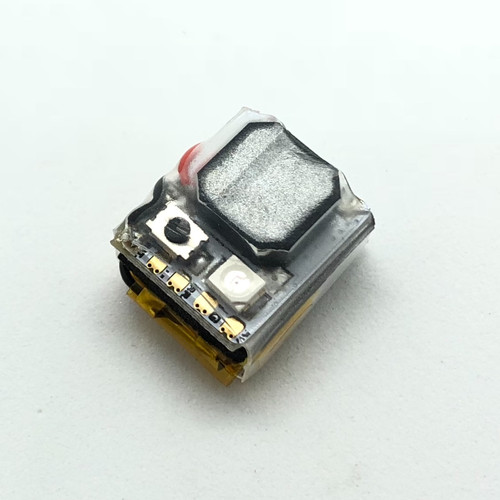

-The FSD Lucky Box Buzzer is a fully automatic acoustic & light alarm for your miniquad or any other kind of aircraft that could suffer from battery ejection after a crash. After the main battery is accidentally disconnected, it will activate the alarm state which you can set up by yourselves.

The FSD Lucky Box Buzzer can be used as a regular buzzer and there is no complicated installation or maintenance process involved. If you would like to use it as a regular buzzer on your aircraft you just need to connect it to a 5V power input, common Ground and a FC buzzer Ground, since it supports a buzzer passthrough.

Switch on:
-Power up the buzzer with 5V to switch on.
After switching on the buzzer, it will long beep x 1 and short beep x 1-3(1 means the buzzer’s battery voltage lower than 3.7V, 2 means lower than 4V, 3 means highter than 4V)

Switch off :
When the automatic alarm is not activated(two methods):
-Short press the button for 3 times to switch off the buzzer (about 1 times per sec.)
-Disconnect and connect the main battery for 8-10s and disconnect the main battery again to switch off the buzzer.
When the automatic alarm is activated(two methods):
-Short press the button for 3 times to switch off the buzzer (about 1 times per sec.)
-Power up with 5V.
You will hear the quick-short tone when the buzzer is switched off.
Some flight controllers’s buzzer pads use a different method than the lucky box is designed for. It will still work but buzzer will constantly sound and can only be turned off when battery reconnected(Short press the button for 3 times to switch off the buzzer)
