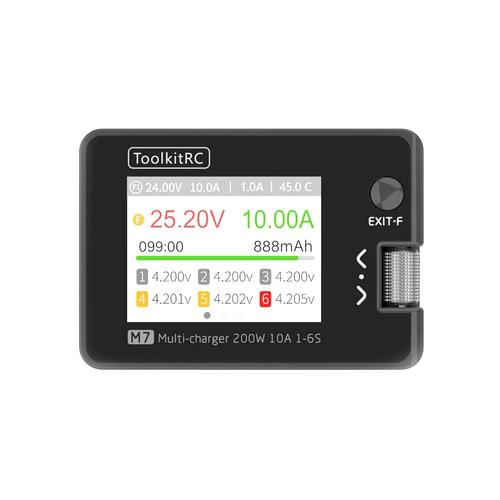

ToolkitRC M7 DC 200W 10A Lipo Smart Balance Charger

Semua produk di etalase DOoFPV ready stock, bisa langsung dipesan. Proses kirim harian tiap Senin-Jumat jam 3 sore.
============================================================

Specifications

LCD: IPS 2.0inch LCD 320*240 Pixel
Product size: 73*51*27 mm
Pack size: 84*79*39 mm
Product weight: 90g
Pack weight: 150g

CHARGER

Discharge power: 200W @MAX 10A Recycle mode / 10W@3A Normal mode
Type of battery: Lipo LiHV LiFe Lion@1-6S / NiMh @1-16S Pb @1-10S
Input voltage 7.0-28.0V @MAX 12A
Charger power: 200W @MAX 10A
Balance current400mA @2-6S
USB: 2.1A @5.0V or Upgrade

OUTPUT

Power supply: 1.0-28.0V @1.0-10A mode:CC+CV
SBUS: 880-2200us*16CH @20-100Hz
PPM: 880-2200us*8CH @20-50Hz
PWM: 500-2500us @20-1000Hz
OverCurrent Cutoff time: <5ms

MEASURER

SBUS: 880-2200us*16CH @20-100Hz
Internal resistance: 1-99mR @1-6S
PPM: 880-2200us*8CH @20-50Hz
ESC: 200W@10A PWM Output
PWM: 880-2200us @20-400Hz
Voltage:1.0-5.0V @1-6S

Includes

1x ToolkitRC M7 Charger
1x USB Charger Cable
