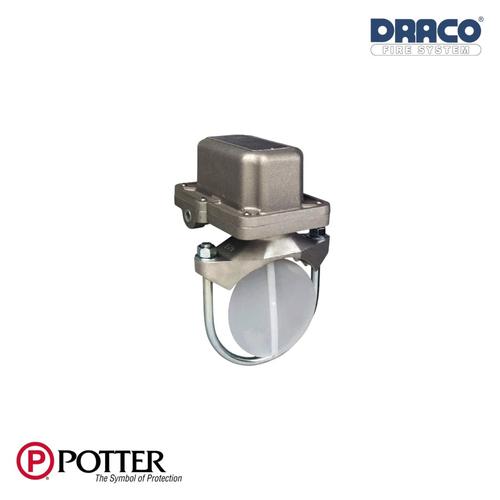

Potter VSR-FEX Explosion Proof Vane Type Waterflow Alarm Switch Retard - 5"

Potter VSR-FEX Explosion Proof Vane Type Waterflow Alarm Switch With Retard Variant Product: a.) Nominal Pipe (2 #34; , DN50) ; Size Model (VSR-FEX , 2) ; Part Number (1113202) b.) Nominal Pipe (2 1/2 #34; , DN65) ; Size Model (VSR-FEX , 2.5) ; Part Number (1113225) c.) Nominal Pipe (3 #34; , DN80) ; Size Model (VSR-FEX , 3) ; Part Number (1113203) d.) Nominal Pipe (4 #34; , DN100) ; Size Model (VSR-FEX , 4) ; Part Number (1113204) e.) Nominal Pipe (6 #34; , DN150) ; Size Model (VSR-FEX , 6) ; Part Number (1113206) f.) Nominal Pipe (8 #34; , DN200) ; Size Model (VSR-FEX , 8) ; Part Number (1113208) *Note: Pengiriman sesuai dengan Variant Part Number yang dipilih* Features: NEMA 4/IP66 solid metal enclosure 0-90 second field replaceable retard Non-corrosive saddle bushing (2) threaded conduit connections Assembled in USA Technical Specifications : Enclosure Cover: Cast Aluminum amp; Base: Cast Aluminum Minimum Flow Rate for Alarm : 10 GPM (38 Lpm) Maximum Surge : 18 FPS (10 m/s) Switch Contacts : Two sets of SPDT (Form C) , 15.0 Amps at 125/250 VAC , 2.0 Amps at 30 VDC Resistive Environmental Limitations : 1.) For use in hazardous locations, Classified as: Class I: Div. 1 amp; Div. 2, Groups C, D Class II: Div. 1 amp; Div. 2, Groups E, F, G, Class III: Div. 1 amp; Div. 2 2.) Suitable for indoor or outdoor use with factory installed gasket and cast aluminum housing 3.) NEMA 4/IP66 Rated Enclosure - use with appropriate conduit fitting 4.) Temperature: 40F/120F (+4.5C Ta +49C) 5.) Non-corrosive sleeve factory installed in saddle Conduit Entrances :Two conduit entrances provided for conduit with NPT threaded connections. Use an ATEX certified plug of protection d, b, and IP66 for all unused conduit openings. Service Use : NFPA 13, 72 Maximum System Pressure : 450 PSI (31 BAR) *Specifications subject to change without notice Indent product : estimated 3 Months - 6 Months
