Lutron DW-6092 3 Phase Power Analyzer - DW-6093 - NON GARANSI

FEATURES:
◆ Analysis for 3 phase multi-power system, 1P/2W, 1P/3W, 3P/3W, 3P/4W
◆ Voltage & Current are the True RMS value
◆ True Power (KW, MW, GW) measurement
◆ Apparent Power (KVA, MVA, GVA) measurement
◆ Reactive Power (KVAR, MVAR, GVAR) measurement
◆ Watt-Hour (WH, SH, QH, PFH)
◆ Power Factor (PF) & Phase Angle ()
◆ Voltage measurement range: 10 to 600 ACV
◆ Current measurement range: 0.2A to 1200 ACA
◆ Programmable CT ratio (1 to 600) and PT ratio (1 to 1000)
◆ ACV input impedance is 10 Mega ohms.
◆ Safety Standard : IEC 1010, CAT III 600V
◆ Built-in clock and Calendar, real time data record with SD memory card , sampling time set from 2 to 7200 seconds. Just slot in the SD card into the computer, it can down load the all the measured value with the time information (year/ month/ date/hour/ minute/ second) to the Excel directly, then user can make the further data analysis by themselves
◆ Computer data output, can cooperate with USB Cable / RS232 cable and Data Acquisition software

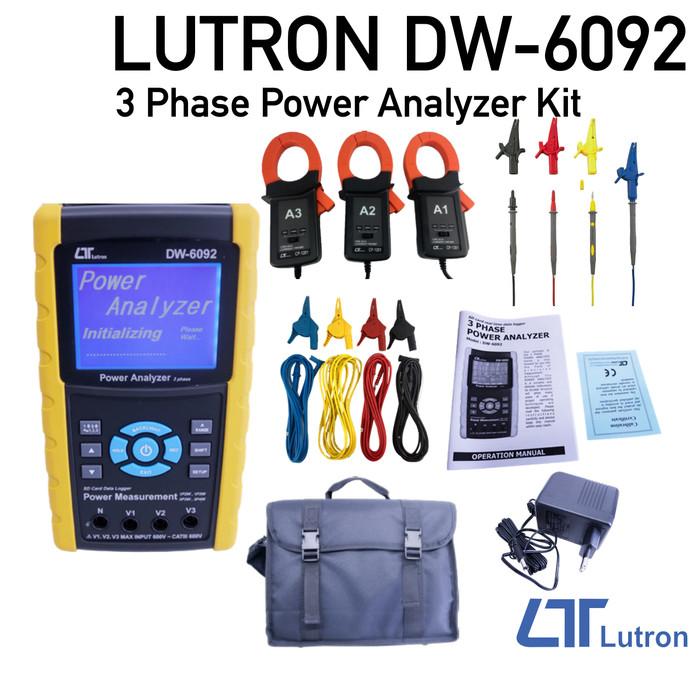

ACCESSORIES INCLUDED:
◆ Instruction manual, 1PC
◆ Test Leads (TL88-4AT), 1 Set (4 PCs)
◆ Alligator clips (TL88-4AC), 1 Set (4 PCs)
◆ Clamp Probe ( CP-1200 ), 3 PCs
◆ AC to DC 9V adapter, 1 PC
◆ SD card (2GB), 1 PC
◆ Carrying bag, 1 PC

OPTIONAL ACCESSORIES:
◆ USB Cable , USB-01
◆ RS232 cable, UPCB-02
◆ Data Acquisition software, SW-U811-WIN
