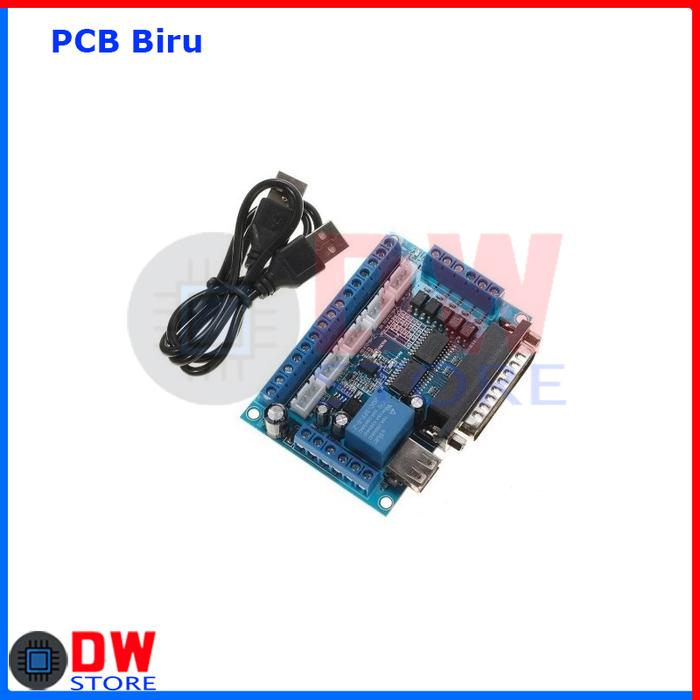

Driver Motor Stepper MACH 3 MACH3 CNC 5 Axis USB Breakout Board BoB - PCB Biru

MACH3 Breakout Board ini menggunakan Port LPT DB25 konektor ya. Port USB nya digunakan sebagai power untuk menyalakan boardnya saja. PCB Biru dan Hijau sama. Specifications: Size: about 89.7 x 68.5 x 19.5mm (3.53 x 2.69 x 0.76) Feature: * MACH3 software supports WIN XP system. * Support of MACH3 and other computer software support for parallel port control. * USB power supply and peripherals powered phase separation to protect computer security. * Peripheral wide voltage input,12-24V, and anti-reverse function. * P1 as PWM outputs can be controlled with optocoupler input spindle governor. * Can be accessed by a common cathode or common anode input level to 5V drive. * All the way through the optocoupler isolated 0-10V analog voltage output can be controlled with the corresponding analog interface converter to control the spindle speed. Output port P1 port. * Open all 17 ports, which can be accessed with the optocoupler drive, 5-axis stepper motor can be controlled. Package include: 1x 5 Axis CNC Match3 Board 1x USB Cable
