Nazgul Evoque F5 V2 Frame Kit (HD/Analog) - Deadcat

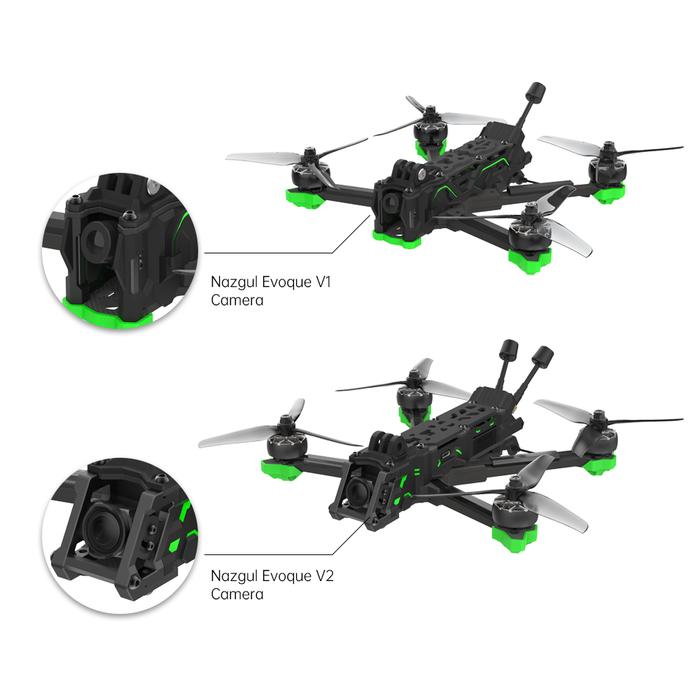

The old days are over, getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts. Highlights: V1 to V2 was upgraded for the DJI O3 HD Air Unit Digital Transmission Specially Designed Heatsink for DJI O3 Air Unit New Camera Mount for a wider camera FOV with TPU damping inserts New Side Panels to perfectly fit the O3 Air Unit in the back New Dual 5.8G VTX Antenna TPU mount Latest Nazgul Frame Upgrades for Maximum Protection Optional Parts to select (not included in frame kit): New Anti Spark Filter to prevent rapid voltage and current spikes plugging in a battery Single DJI VTX Antenna TPU to install the original DJI O3 set included antenna. Specifications Product Name: Evoque F5 V2 Frame Kit Frame wheelbase: 225mm (Squashed X) / 223 mm (DeadCat) Frame Dimension: L258*W199*H25 mm (Squashed X) / L190*W136*H36 mm (DeadCat) Frame Body Dimension: 36mm Arm Thickness: 6mm Bottom Plate Thickness: 3mm Top Plate Thickness: 2mm Upper Plate Thickness: 3mm Camera Plate Thickness: 3mm Motor Mounting: 16x16mm VTX Mounting: 25.5*25.5/Φ1.6mm Weight: 150grams (Included no TPU Parts) Packing List: 1 x Evoque F5 V2 Frame Kit (deadcat/X shape depend on variant selected) 1x O3 Air Unit Heatsink 2x O3 IPEX to RP-SMA Antenna Pigtails 1 x O3 Dual Antenna TPU 1 x GoPro TPU Base Mount 1 x Screw Bag 4 x TPU Armguard 1 x Front Bumper TPU 1 x Rear Bumper TPU 2 x Anti-slip Battery Pad 2 x Battery Strap (20*250mm)
