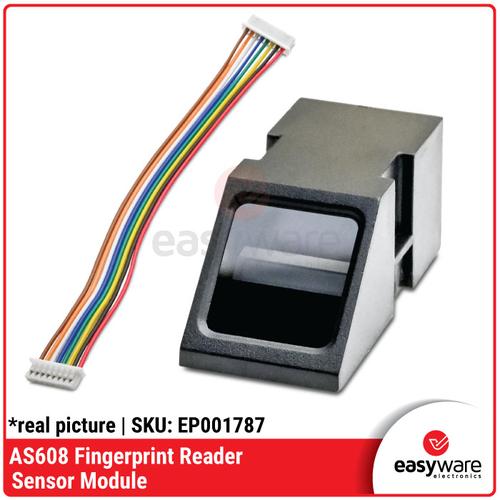

AS608 Fingerprint Reader Sensor module Fingerprint module

Hi #RekanEasyWare ... EasyWare Part#: EP001787 When the fingerprint is registered, two fingerprints are entered for each fingerprint, and the input image is processed twice. The synthesis module is stored in the module. When the fingerprint is matched, the fingerprint sensor is used to input the fingerprint image to be verified and processed, and then it is compared with the fingerprint module in the module (if it is matched with a module specified in the module, it is called fingerprint comparison mode, ie, 1:1 mode. If matching with multiple modules is called fingerprint search, ie 1:N mode, the module gives the matching result (pass or fail). The fingerprint algorithm extracts features from the acquired fingerprint image and represents the fingerprint information. The storage, comparison and search of fingerprints are all done by operating fingerprint features. Fingerprint processing includes two processes: fingerprint registration process and fingerprint matching process (in which fingerprint matching is divided into fingerprint comparison (1:1) and fingerprint search (1:N) two ways). Spesifications : - Resolution: 500dpi - Supply current: lt;60mA - Supply voltage: 3.3V - Fingerprint image entry time: lt;1.0 seconds - Peak current: lt;60mA - Window area: 15.3x18.2MM - Communication Interface: USB/UART Package : - 1x AS608 Fingerprint Reader Sensor module
